K-560 SEVERODVINSK nuclear powered multipurpose submarines (projects 08850, 08851) (2013- )

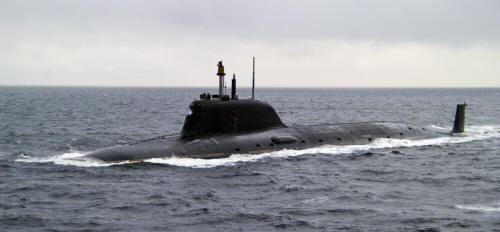

K-560 Severodvinsk 2016
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate | Modification |
|---|---|---|---|---|---|---|---|---|
| К-560 Северодвинск [K-560 Severodvinsk] | 840 | 160 | Severnoye Mashinostroitelnoye Predpriyatiye, Severodvinsk | 21.12.1993 | 15.6.2010 | 30.12.2013 | in service (2019) | Project 885 |
| К-561 Казань [K-561 Kazan'] | 161 | Severnoye Mashinostroitelnoye Predpriyatiye, Severodvinsk | 24.7.2009 | 8.4.2017 | 2019 | building (2019) | Project 08851 | |
| К-573 Новосибирск [K-573 Novosibirsk] | 162 | Severnoye Mashinostroitelnoye Predpriyatiye, Severodvinsk | 26.7.2013 | 2019 | 2020 | building (2019) | Project 08851 | |
| К-571 Красноярск [K-571 Krasnoyarsk] | 163 | Severnoye Mashinostroitelnoye Predpriyatiye, Severodvinsk | 27.7.2014 | 2019 | 2020 | building (2019) | Project 08851 | |
| К-564 Архангельск [K-564 Arkhangelsk] | 164 | Severnoye Mashinostroitelnoye Predpriyatiye, Severodvinsk | 19.3.2015 | 2020 | 2021 | building (2019) | Project 08851 | |
| Пермь [Perm'] | 165 | Severnoye Mashinostroitelnoye Predpriyatiye, Severodvinsk | 29.7.2016 | 2021 | 2022 | building (2019) | Project 08851 | |
| Ульяновск [Ulyanovsk] | 166 | Severnoye Mashinostroitelnoye Predpriyatiye, Severodvinsk | 28.7.2017 | 2022 | 2023 | building (2019) | Project 08851 |
Technical data
| Displacement standard, t |
|
|---|---|
| Displacement normal, t | 9500 / 11800 |
| Length, m | 139.2 |
| Breadth, m | 13.0 hull |
| Draught, m | 9.40 |
| No of shafts | 1 |
| Machinery | 1 geared steam turbines unit, 1 OK-650V nuclear reactor |
| Power, h. p. | 43000 |
| Max speed, kts | 16 / 28 |
| Fuel, t | nuclear |
| Endurance, nm(kts) | practically unlimited |
| Armament | 8 x 4 Oniks SSM / Kalibr-PL CruM/SSM (VLS, 32 P-160 (3M55) / 3M14 / 3M54), 10 - 533 TT (30, inc. Granat CruM (3M10), Kalibr-PL CruM/SSM (3M14/3M54)) |
| Electronic equipment | pr. 885: RKP-58 Radian radar, MGK-600 Irtysh-Amfora-Yasen' sonar suite, Ayaks sonar, ECM suite, decoys, 3Ts-30.0 Banknot targeting system, CCS pr. 08851, 161: R-43M radar, MGK-600 Irtysh-Amfora-Yasen' sonar suite, Ayaks sonar, ECM suite, decoys, 3Ts-30.0 Banknot targeting system, CCS pr. 08851, 162-166: R-43M radar, MGK-600 Irtysh-Amfora-Yasen' sonar suite, Ayaks sonar, ECM suite, decoys, 3Ts-30.0M Banknot-M targeting system, CCS |
| Complement | 85 |
| Diving depth operational, m | 520 |
Standard scale images
K-560 Severodvinsk 2015
Graphics
K-560 Severodvinsk 2016
Project history
Having a variant of Project 971 nuclear reactor, these submarines have significantly enhanced noise-reduction features. This class carries a new coating and is considered to be the quietest Russian nuclear-powered submarine. Quiet-operating speed is 20kts. Sonar suite includes bow spherical active/passive array, flank arrays and towed arrays. Rescue chamber can accommodate all the crew. Now lead-submarine of the class carries in the vertical tubes new supersonic long-range Oniks anti-ship missiles and Kalibr-PL family missiles, including 3M14 strategic land-attack cruise missiles and 3M54 anti-ship missiles with supersonic 2nd stage, anti-submarine 91R1 missile carrying ASW torpedo is tested. UGST multi-purpose torpedoes and 3M10 Granat subsonic strategic cruise missiles can be launched from torpedo tubes.
Modernizations
None.
Naval service
No significant events.
