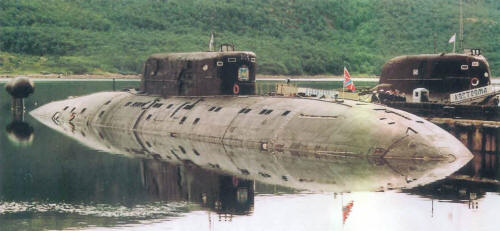

B-336 Pskov 2002

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
К-534 [K-534], 6.1992- Б-534 [B-534], 4.1993- Б-534 Зубатка [B-534 Zubatka], 4.1996- Б-534 Нижний Новгород [B-534 Nizhniy Novgorod]	807	3003	Krasnoe Sormovo, Gorkiy	15.2.1986	8.7.1989	26.12.1990	in service (2019)
Б-336 Окунь [B-336 Okun'] (ex-К-336 [K-336]), 4.1996- Б-336 Псков [B-336 Pskov]	663	3004	Krasnoe Sormovo, Nizhniy Novgorod	29.7.1989	28.7.1992	14.12.1993	in service (2019)
К-536 [K-536]		3005	Krasnoye Sormovo, Gorkiy	1988	---	---	cancelled 1994
...		3006	Krasnoye Sormovo, Gorkiy	1989	---	---	abandoned 1990

Technical data

Displacement standard, t
Displacement normal, t	6466 / 8500
Length, m	110.6
Breadth, m	12.3 hull 16.7 max
Draught, m	9.50
No of shafts	1
Machinery	3003: 1 OK-9D geared steam turbines unit, 1 OK-650M.01 nuclear reactor 3004: 1 OK-9D geared steam turbines unit, 1 OK-650M.02 nuclear reactor
Power, h. p.	50000
Max speed, kts	14 / 32.8
Fuel, t	nuclear
Endurance, nm(kts)	practically unlimited
Armament	6 - 533 TT (36, inc. Granat CruM (3M10), URPK-6 Vodopad-PL SSM/ASuM (83R, 84R), VA-111 Shkval rocket torpedoes), 1 x 1 Igla SAM (12 9M39)
Electronic equipment	3003: MRKP-58 Radian radar, MGK-540 Skat-3 sonar suite, MG-519 Arfa, MG-512 Vint-M sonars, MNK-200 wake detector, MRP-23 ECM suite, MG-74 Korund-2 decoys, MVU-132 Omnibus-5 CCS 3004: MRKP-59 Radian-U radar, MGK-540 Skat-3 sonar suite, MG-519 Arfa, MG-512 Vint-M sonars, MNK-200 wake detector, MRP-23 ECM suite, MG-74 Korund-2 decoys, MVU-132 Omnibus-5 CCS
Complement	65
Diving depth operational, m	480

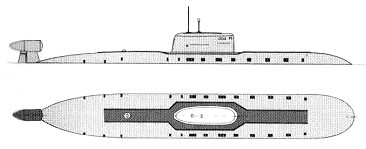

Standard scale images

Graphics

Project history

Titanium hull. Project 945 without 650mm torpedo tubes but with ability to launch Granat cruising missiles and new sonar suite.

Modernizations

2015, B-336 Pskov, 2018, B-534 Nizhniny Novgorod: + ability to carry Kalibr-PL CruM (3M14K) / Kalibr-PL SSM (3M54K)

Naval service

No significant events.
