K-387 nuclear powered attack submarines (project 671RT) (1972 - 1978)





Project 671RT 1978

Ships


Name No Yard No Builder Laid down Launched Comp Fate
К-387 [K-387], 6.1992- Б-387 [B-387]   801 Krasnoe Sormovo, Gorkiy 2.4.1971 2.9.1972 30.12.1972 stricken 8.1995
К-371 [K-371], 6.1992- Б-371 [B-371]   802 Krasnoe Sormovo, Gorkiy 27.2.1973 30.7.1974 30.9.1974 stricken 7.1996
К-467 [K-467], 6.1992- Б-467 [B-467]   803 Krasnoe Sormovo, Gorkiy 19.11.1974 7.5.1976 30.11.1976 stricken 9.1997
К-488 [K-488], 6.1992- Б-488 [B-488]   804 Krasnoe Sormovo, Gorkiy 15.12.1976 8.10.1977 29.9.1978 stricken 6.1993
К-505 [K-505]   805 Krasnoe Sormovo, Gorkiy 1.1975 --- --- cancelled 6.1975
К-495 [K-495], 6.1992- Б-495 [B-495]   01621 Admiralty Yd, Leningrad 28.9.1974 26.8.1975 31.12.1975 stricken 6.1993
К-513 [K-513], 6.1992- Б-513 [B-513]   01625 Admiralty Yd, Leningrad 22.7.1975 21.8.1976 27.12.1976 stricken 6.1993
К-517 [K-517], 6.1992- Б-517 [B-517]   01627 Admiralty Yd, Leningrad 23.3.1977 24.8.1978 31.12.1978 stricken 6.1993


Technical data


Displacement standard, t



Displacement normal, t

4245 / 5480

Length, m

102.0

Breadth, m

10.6 hull 16.5 max

Draught, m

6.50

No of shafts

1

Machinery

1 GTZA-649 geared steam turbines unit, OK-300 steam generation unit (2 VM-4 nuclear reactors)

Power, h. p.

31000

Max speed, kts

11.7 / 31.7

Fuel, t

nuclear

Endurance, nm(kts)

practically unlimited

Armament

2 - 650 TT (6), 4 - 533 TT (18, inc. URPK-6 Vodopad-PL SSM/ASuM (83R, 84R), RPK-2 Vyuga 81R ASuM, VA-111 Shkval rocket torpedoes or 18 - 36 mines)

Electronic equipment

MRK-50 Kaskad, Tobol radars, MGK-300T Rubin, MG-519 Arfa sonars, MRP-10M Zaliv-P ECM suite, MG-74 Korund-2 decoys, MVU-111 Akkord CCS

Complement

91

Diving depth operational, m

320



Standard scale images

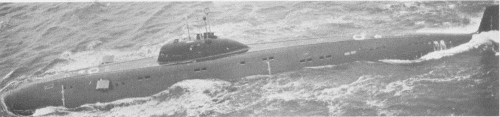

<i>K-371 </i>1990
K-371 1990


Graphics


Project 671RT 1978
Project 671RT 1978


Project history

The technical design was approved 15 June 1967. This is Project 671 redesigned to take the follow-on submarine-launched weapon, the Vodopad-PL, including two types of missiles: anti-submarine 83R and dual-purpose (anti-ship and anti-submarine) 84R. This weapon could deliver a homing torpedo; hence the RT suffix to the project number.

Modernizations

1984, K-488; 1987, K-387: - MRK-50 Kaskad radar, MGK-300T Rubin sonar suite; + RLK-101M Albatros radar, MGK-400 Rubikon sonar suite

Naval service

No significant events.
