NAVYPEDIA


Project 667B 1976

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
К-279 [K-279]		310	Northern Yd, Severodvinsk	30.3.1970	20.12.1971	27.12.1972	stricken 3.1992
К-447 [K-447], 2000- К-447 Кисловодск [K-447 Kislovodsk]		311	Northern Yd, Severodvinsk	18.3.1971	31.12.1972	30.9.1973	stricken 3.2004
К-450 [K-450]		312	Northern Yd, Severodvinsk	30.7.1971	15.4.1973	29.12.1973	stricken 6.1993
К-385 [K-385]		324	Northern Yd, Severodvinsk	20.10.1971	18.6.1973	30.12.1973	stricken 11.1994
К-457 [K-457]		325	Northern Yd, Severodvinsk	31.12.1971	25.8.1973	30.12.1973	stricken 1999
К-465 [K-465]		326	Northern Yd, Severodvinsk	22.3.1972	2.12.1973	30.9.1974	stricken 1.1994
К-460 [K-460]		337	Northern Yd, Severodvinsk	5.6.1972	7.2.1974	20.9.1974	stricken 3.1995
К-472 [K-472]		338	Northern Yd, Severodvinsk	10.8.1972	26.4.1974	14.11.1974	stricken 3.1995
К-475 [K-475]		339	Northern Yd, Severodvinsk	17.10.1972	25.6.1974	23.12.1974	stricken 3.1995
К-171 [K-171]		340	Northern Yd, Severodvinsk	24.1.1973	4.8.1974	29.12.1974	stricken 3.1995
К-366 [K-366]		221	Leninskiy Komsomol Yd, Komsomolsk-on-Amur	6.3.1973	8.6.1974	30.12.1974	stricken 9.1993
К-417 [K-417]		222	Leninskiy Komsomol Yd, Komsomolsk-on-Amur	9.5.1974	6.5.1975	20.12.1975	stricken 1.1995
К-477 [K-477]		223	Leninskiy Komsomol Yd, Komsomolsk-on-Amur	5.12.1974	13.7.1975	30.12.1975	stricken 3.1995
К-497 [K-497]		224	Leninskiy Komsomol Yd, Komsomolsk-on-Amur	21.2.1975	29.4.1976	31.10.1976	stricken 3.1995
К-500 [K-500]		225	Leninskiy Komsomol Yd, Komsomolsk-on-Amur	25.7.1975	14.7.1976	19.12.1976	stricken 2000
К-512 [K-512], 10.1988- К-512 70 лет ВЛКСМ [K-512 70 Let VLKSM], 2.1992- К-512 [K-512]		226	Leninskiy Komsomol Yd, Komsomolsk-on-Amur	21.1.1976	26.9.1976	18.8.1977	stricken 3.1995
К-523 [K-523]		227	Leninskiy Komsomol Yd, Komsomolsk-on-Amur	1.7.1976	3.5.1977	30.10.1977	stricken 3.1995
К-530 [K-530]		228	Leninskiy Komsomol Yd, Komsomolsk-on-Amur	5.11.1976	23.7.1977	28.12.1977	stricken 1999

Technical data

Displacement standard, t
Displacement normal, t	8900 / 11000
Length, m	139.0
Breadth, m	11.7
Draught, m	8.40
No of shafts	2
Machinery	2 TZA-635 geared steam turbines units, 2 OK-700 nuclear reactors
Power, h. p.	40000
Max speed, kts	16 / 25
Fuel, t	nuclear
Endurance, nm(kts)	practically unlimited
Armament	12 R-29 SLBM (12 R-29 (4K75)), 4 - 533 TT (bow, 12), 2 - 400 TT (bow, 4) 227, 228: 12 R-29D SLBM (12 R-29D (4K75D)), 4 - 533 TT (bow, 12), 2 - 400 TT (bow, 4)
Electronic equipment	MRK-50 Kaskad radar, MGK-100 Kerch' sonar, MRP-10M Zaliv-P ECM suite, MG-44 Korund-1 decoys, Almaz-B CCS
Complement	120
Diving depth operational, m	320

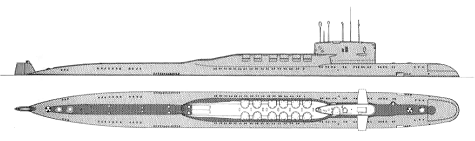

Standard scale images

Graphics

Project history

This submarine was built on pr. 667A hull but earned twelve much longer-ranged missiles. The 'B' in the project number indicates a major armament change. The appearance of the new missile changed Soviet naval strategy because it made the defence of extensive wartime 'bastions', in which the submarines would operate, essential. The earlier pr. 667A would have begun a war either on patrol off the US coast or in protected harbours; the navy's strategic support mission would have been to help them break out to sea. This may have been the first Soviet ballistic-missile submarine with a 'Second Captain' combat data computer.

Modernizations

1985, K-450; 1986, K-472; 1987, K-460, K-475; 1988, K-512 70 Let VLKSM; 1989, K-497, K-500: - 12 R-29 SLBM (12 R-29 (4K75)); + 12 R-29D SLBM (12 R-29D (4K75D))

Naval service

No significant events.
