K-156 cruise missile submarines (project 651) (1963 - 1968)

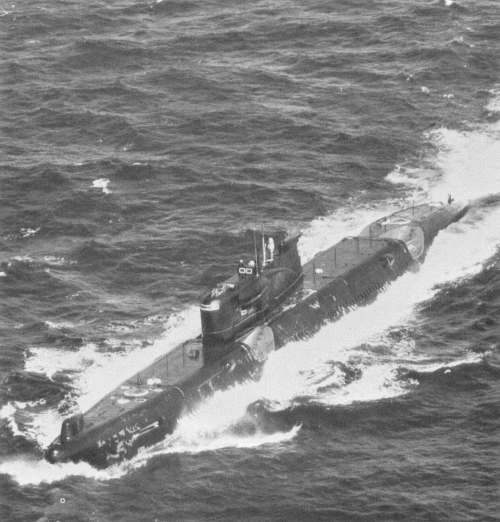

Project 651 1979

Ships


Name No Yard No Builder Laid down Launched Comp Fate
К-156 [K-156], 7.1977- Б-156 [B-156]   552 Baltic Wks, Leningrad 16.11.1960 31.7.1962 10.12.1963 stricken 4.1990
К-85 [K-85], 7.1977- Б-124 [B-124]   553 Baltic Wks, Leningrad 25.10.1961 31.1.1964 30.12.1964 stricken 6.1993
К-24 [K-24], 7.1977- Б-24 [B-24]   511 Krasnoe Sormovo, Gorkiy 15.10.1961 15.12.1962 31.10.1965 stricken 6.1993
К-68 [K-68], 7.1977- Б-68 [B-68], 4.1990- БС-68 [BS-68]   512 Krasnoe Sormovo, Gorkiy 25.1.1962 30.4.1963 28.12.1965 stricken 8.1990
К-63 [K-63], 7.1977- Б-63 [B-63]   513 Krasnoe Sormovo, Gorkiy 25.4.1962 26.7.1963 12.6.1966 stricken 8.1989
К-70 [K-70], 7.1977- Б-270 [B-270]   514 Krasnoe Sormovo, Gorkiy 25.8.1962 6.2.1964 31.12.1964 stricken 6.1989
К-77 [K-77], 7.1977- Б-77 [B-77]   515 Krasnoe Sormovo, Gorkiy 31.1.1963 11.3.1965 31.10.1965 stricken 4.1994
К-58 [K-58], 7.1977- Б-58 [B-58]   521 Krasnoe Sormovo, Gorkiy 15.7.1963 12.2.1966 23.9.1966 stricken 4.1990
К-81 [K-81], 7.1977- Б-81 [B-81]   522 Krasnoe Sormovo, Gorkiy 20.11.1963 7.8.1964 14.12.1965 stricken 4.1991
К-73 [K-73], 7.1977- Б-73 [B-73]   523 Krasnoe Sormovo, Gorkiy 1.8.1964 31.5.1966 15.12.1966 stricken 4.1990
К-67 [K-67], 7.1977- Б-67 [B-67]   524 Krasnoe Sormovo, Gorkiy 31.1.1965 29.10.1966 30.9.1967 stricken 7.1994
К-78 [K-78], 7.1977- Б-478 [B-478]   525 Krasnoe Sormovo, Gorkiy 25.7.1965 30.3.1967 1.11.1967 stricken 6.1991
К-203 [K-203], 7.1977- Б-203 [B-203]   531 Krasnoe Sormovo, Gorkiy 25.12.1965 30.6.1967 2.12.1967 stricken 6.1993
К-304 [K-304], 7.1977- Б-304 [B-304]   532 Krasnoe Sormovo, Gorkiy 6.8.1966 24.11.1967 21.8.1968 stricken 4.1990
К-318 [K-318], 7.1977- Б-318 [B-318]   533 Krasnoe Sormovo, Gorkiy 29.3.1967 29.3.1968 29.9.1968 stricken 4.1990
К-120 [K-120], 7.1977- Б-120 [B-120]   534 Krasnoe Sormovo, Gorkiy 25.3.1967 11.7.1968 26.12.1968 stricken 4.1990


Technical data


Displacement standard, t



Displacement normal, t

3140 / 4132

Length, m

85.9

Breadth, m

9.70

Draught, m

6.90

No of shafts

2

Machinery

2 1D43 diesels / 2 MG-141 electric motors

Power, h. p.

8000 / 12000

Max speed, kts

552, 553, 514: 16 / 18.1

others: 16 / 14.5

Fuel, t

diesel oil

Endurance, nm(kts)

552, 553, 514: 18000(7) / 810(2.8)

others: 18000(7) / 350(2.8)

Armament

552, 553, 514: 2 x 2 P-5D SSM (4 P-5D), 6 - 533 TT (bow, 6), 4 - 400 TT (stern, 12)

511-513, 515-515: 2 x 2 P-6 SSM (4 4K88), 6 - 533 TT (bow, 6), 4 - 400 TT (stern, 12)

531-534: 2 x 2 P-6 SSM (4 4K88), 6 - 533 TT (bow, 10), 4 - 400 TT (stern, 12)

Electronic equipment

552-515: RLK-101 Albatros, Argument radars, MG-200 Arktika-M, MG-10 Kola, Svet-2, Tuloma sonars, Nakat, MRPTs-2 ECM suites

531-534: RLK-101 Albatros, Argument radars, MG-200 Arktika-M, MG-10 Kola, Svet-2, Tuloma sonars, Nakat, K-24 ECM suites

Complement

83

Diving depth operational, m

270



Standard scale images


<i>K-156 </i>1963
K-156 1963
<i>B-203 </i>1990
B-203 1990


Graphics


Project 651 1979
Project 651 1979


Project history

In effect this was a diesel equivalent to Project 675, carrying half the missiles. Missiles had to be carried in elevating launchers which folded flat on deck, hence consuming considerable length. Project 651 could accommodate only four weapons. The Project 651 sonar suit matches that of an Project 675, with Arktika in the forefoot. There is also a sonar window in the forward part of the sail, which swings aside to expose the submarine's Argument missile guidance radar.

Modernizations

1960s, K-156, K-85, K-70: silver-zinc batteries were replaced by lead-acid, data was as other boats.

1965-67, K-156, K-85, K-70: - 2 x 2 P-5D SSM; + 2 x 2 P-6 SSM (4 4K88)

1968, 552-515: - MRPTs-2 ECM suite; + K-24 ECM suite

1970, K-81 - under Project 651K: Kasatka-B satellite-supported SSM targeting system was installed

1985, B-68 - under Project 651E: auxiliary nuclear reactor VAU-6 was installed (600kW), submerged range was greatly improved.

Naval service

No significant events.
