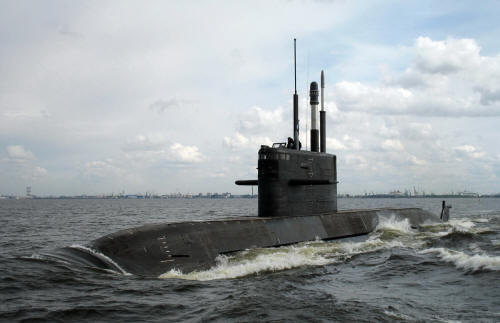

B-585 Sankt-Peterburg 2013

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate	Modification
Б-585 Санкт-Петербург [B-585 Sankt-Peterburg]	477	01570	Admiralteyskiye verfi, St. Petersburg	26.12.1997	28.10.2004	22.4.2010	in service (2019)	Project 677
Б-586 Кронштадт [B-586 Kronshtadt]		01571	Admiralteyskiye verfi, St. Petersburg	28.7.2005	20.9.2018	2020	building (2019)	Project 06671
Б-587 Великие Луки [B-587 Velikiye Luki] (ex-Б-587 Севастополь [B-587 Sevastopol'])		01572	Admiralteyskiye verfi, St. Petersburg	10.11.2006	2019	2021	building (2019)	Project 06671

Technical data

Displacement standard, t
Displacement normal, t	1450 / 2100
Length, m	58.0
Breadth, m	7.20
Draught, m	4.80
No of shafts	1
Machinery	2 diesel-generators, 1 PG-102M electric motor
Power, h. p.	2700
Max speed, kts	11 / 17
Fuel, t	diesel oil
Endurance, nm(kts)	4000(7) / 650(3)
Armament	6 - 533 TT (bow, 16 or 22 mines)
Electronic equipment	MRK-50 Kaskad radar, Lira sonar suite, ECM, Litiy CCS
Complement	34
Diving depth operational, m	200

Standard scale images

Graphics

Project history

First unit was ordered as technology demonstrator for larger export Amur-1650 design. Sea trials of leading submarine delayed till 2012 and proven unsuccessful. Construction of later units was slowed. Now construction of 2nd and 3rd boats was delayed awaiting for ability of installing new air-independent propulsion system.

Submarines are single-hulled, with sail-mounted bow planes and cruciform stern control surfaces. Said to be 8-10 times quieter than project 877 submarines, as example they have brushless generators to reduce noise.

Modernizations

None.

Naval service

No significant events.
