MAK-2 small gun ships (project 1208) (1975 - 1984)

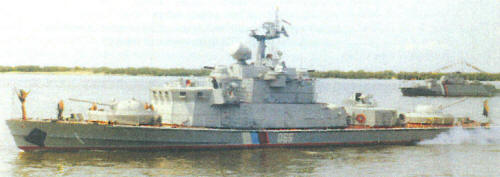

Blagoveshchensk 1995

Ships


Name No Yard No Builder Laid down Launched Comp Fate Modification
МАК-2 [MAK-2], 8.1995- Гроза [Groza]   201 Khabarovsk SYd 31.8.1973 14.9.1974 10.9.1975 to Board Guard 11.1994, stricken 2003 Project 1208
МАК-6 [MAK-6], 8.1995- Смерч [Smerch]   202 Khabarovsk SYd 30.10.1974 5.11.1975 30.9.1976 to Board Guard 11.1994, stricken 2003 Project 1208
МАК-4 [MAK-4], 8.1995- Тайфун [Tayfun]   203 Khabarovsk SYd 27.10.1975 28.10.1976 30.7.1977 to Board Guard 11.1994, stricken 2003 Project 1208
Имени 60-летия Октября [Imeni 60-letiya Oktyabria], 12.1993- Хабаровск [Khabarovsk]   204 Khabarovsk SYd 26.11.1975 28.4.1977 28.10.1977 Board Guard, stricken 2003 Project 1208
Имени 60-летия ВЧК [Imeni 60-letiya VChK], 12.1993- Благовещенск [Blagoveshchensk]   205 Khabarovsk SYd 14.10.1976 15.10.1977 28.6.1979 Board Guard, stricken 2003 Project 1208
МАК-7 [MAK-7], 8.1995- Шторм [Shtorm]   206 Khabarovsk SYd 31.3.1977 6.5.1978 30.9.1978 to Board Guard 11.1994, stricken 2003 Project 1208
Имени 60-летия погранвойск [Imeni 60-letiya Pogranvoysk]   207 Khabarovsk SYd 21.9.1977 28.10.1978 8.7.1979 Board Guard, stricken 2003 Project 1208
Хабаровский комсомолец [Khabarovskiy Komsomolets], 2.1992- МАК-8 [MAK-8], 8.1995- Вихрь [Vikhr']   208 Khabarovsk SYd 23.3.1978 29.10.1979 27.6.1980 to Board Guard 11.1994, stricken 2003 Project 1208
МАК-10 [MAK-10], 8.1995- Шквал [Shkval]   209 Khabarovsk SYd 27.2.1979 28.10.1980 30.5.1981 to Board Guard 11.1994, stricken 2003 Project 1208
МАК-3 [MAK-3], 8.1995- Ураган [Uragan]   210 Khabarovsk SYd 30.10.1980 24.4.1982 24.8.1982 to Board Guard 11.1994, stricken 2003 Project 1208
МАК-11 [MAK-11], 8.1995- Вьюга [Vyuga] 106 211 Khabarovsk SYd 26.4.1982 20.8.1983 17.8.1984 to Board Guard 11.1994, in service (2019) Project 12081


Technical data


Displacement standard, t

390

Displacement full, t

450

Length, m

55.1

Breadth, m

9.14

Draught, m

1.44

No of shafts

3

Machinery

3 M-504B diesels

Power, h. p.

11400

Max speed, kts

23

Fuel, t

diesel oil

Endurance, nm(kts)

540(10)

Armour, mm

belt: 20, magazines: 35, turrets: 35, CT: 35

Armament

pr. 1208: 1 x 4 Strela-2 SAM (16 9M32), 2 x 1 - 100/54 D-10-T2s, 2 x 6 - 30/54 AK-630, 2 x 2 - 12.7/79, 2 x 1 - 7.6/90, 2 x 1 - 30 BP-30 Plamia grenade launchers, 1 x 2 - 140 ZIF-121M Sneg RL (120)

pr. 12081: 1 x 4 Strela-2 SAM (16 9M32), 2 x 1 - 100/54 D-10-T2s (inc. Bastion-K 9M117 ATM), 1 x 6 - 30/54 AK-630, 2 x 2 - 12.7/79, 2 x 1 - 7.6/90, 2 x 1 - 30 BP-30 Plamia grenade launchers, 1 x 2 - 140 ZIF-121M Sneg RL (120), 1 Akvilon laser gun

Electronic equipment

pr. 1208 201-208, 210: MR-123 Vympel-A, Mius radars

pr. 1208 209: Mius radar

pr. 12081: Volna, Mius radars

Complement

32



Standard scale images


<i>Smerch</i> 2010
Smerch 2010


Graphics


<i>Blagoveshchensk </i>1995
Blagoveshchensk 1995


Project history

Almaz (TsKB-5) began work on this large gunboat in 1967, but the prototype did not appear until 1975. The Soviet Navy then abandoned building specialist riverine craft in favour of air-cushion craft which could transport the army's self-propelled artillery and missile launchers.

Ship protection

No additional comments.

Modernizations

None.

Naval service

No significant events.
