BURYAT river gunboats (1907)

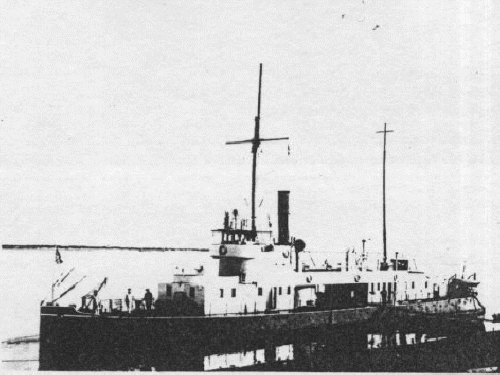

Orochanin 1907

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Бурят [Buryat]     Sormovo, Nizhniy Novgorod // Kokuy 1905 spring 1907 9.1907 captured by Japan 7.9.1918, returned 5.1925, stricken 3.1958
Монгол [Mongol]     Sormovo, Nizhniy Novgorod // Kokuy 1905 spring 1907 9.1907 captured by Japan 7.9.1918, returned 5.1925, stricken 2.1948
Орочанин [Orochanin]     Sormovo, Nizhniy Novgorod // Kokuy 1905 spring 1907 9.1907 scuttled 18.9.1918


Technical data


Displacement normal, t193
Displacement full, t288
Length, m

54.5

Breadth, m

8.23

Draught, m0.91
No of shafts

2

Machinery

2 VTE, 2 locomotive boilers

Power, h. p.

480

Max speed, kts

11.5

Fuel, t

coal 45 + oil 36

Endurance, nm(kts)1000(8)
Armour, mmbelt: 12, deck: 5, CT: 8
Armament

2 x 1 - 75/48 Canet, 2 x 1 - 7.6/94

Complement40


Standard scale images


<i>Mongol</i> 1941
Mongol 1941
<i>Buryat</i> 1914
Buryat 1914


Graphics


<i>Orochanin</i> 1907
Orochanin 1907


Project history

Purpose built for service on Amur and its runs. Shallow-draught, armoured gunboats, had outdated locomotive boilers.

Ship protection

Bulletproof protection.

Modernizations

1912, all: + 2 x 1 - 47/40 Hotchkiss

1929, Buryat; 1932, Mongol: - 2 x 1 - 75/48, 2 x 1 - 47/40; + 2 x 1 - 76/38 obr.1902/30, 8 x 1 - 7.6/94

1936, Buryat; 1937, Mongol: - 3 x 1 - 7.6/94; + 2 x 1 - 45/43 21K.

1945, Buryat: - 2 x 1 - 45/43; + 2 x 1 - 37/63 70K, 2 x 1 - 12.7/79

Naval service

With the beginning of WWI all were disarmed and mothballed. In 1918 Buryat and Mongol were captured by Japanese and withdrawn to Sakhalin. They were returned to the USSR in mid-1920s. Orochanin was blown up by crew in upper part of river Zeya. She was never repaired and broken up in 1923.
