AKTIVNYY monitor (project SB-30) (1935)





Aktivnyy

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Активный [Aktivnyy], 4.1952- Кенга [Kenga]     300 Yd (Leninskaya Kuznitsa), Kiev // 368 Yd (Kirov Yd), Khabarovsk 1934 23.8.1934 10.1935 TS 4.1952, stricken 6.1953


Technical data


Displacement standard, t250
Displacement full, t314
Length, m

50.7

Breadth, m

8.20

Draught, m1.06
No of shafts

2

Machinery

2 4DR-24/38 diesels

Power, h. p.

480

Max speed, kts

8.5

Fuel, t

diesel oil 20

Endurance, nm(kts)2754(8)
Armour, mmbelt: 30 - 16, deck: 16 - 4, bulkheads: 8 - 4, turret: 30, CT: 30
Armament

1 x 2 - 102/43 MK-2-4, 2 x 2 - 45/43 41K, 1 x 4 - 7.6/94, 1 x 2 - 7.6/94

Complement68


Standard scale images


<i>Aktivnyy</i> 1943
Aktivnyy 1943


Graphics

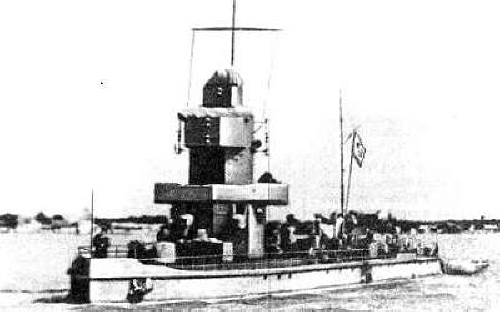

<i>Aktivnyy</i>
Aktivnyy


Project history

Original ship, in some kind successor of the first Ericsson`s Monitor. She had low-freeboard armoured hull completely deprived of superstructures on which the massive rotating turret with two 102mm guns was raised. The conning tower was consolidated on a turret roof and rotated together with it, that became one of the basic lacks of the design. On full speed ship created big stern wave and badly answered the helm. Though Aktivny intended for actions on Pripyat and upper part of Dnepr, in connection with circumstances complication in the Far East she was in the taken apart kind transported to Khabarovsk where she was completed.

Ship protection

Citadel and turret with CT had light splinterproof (mostly 30mm) armour.

Modernizations

1944: + 1 x 1 - 37/63 70K, 3 x 1 - 12.7/79.

Naval service

Kenga 11.6.1953 was stricken and transferred to the Amur shipping company, scrapped in 1957.
