T-181 minesweepers (1942 - 1945 / 1945)
T-595
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| T-181 (ex-YMS447) | Robert Jacob, New York, USA | 6.1943 | 18.3.1944 | 6.1944 // 3.1945 | stricken 1956 | ||
| T-182 (ex-YMS457) | Greenport Basin, USA | 11.1943 | 8.1.1944 | 9.1944 // 3.1945 | stricken 1956 | ||
| T-183 (ex-YMS460) | Stadium, Cleveland, USA | 6.1943 | 4.12.1943 | 5.1944 // 4.1945 | stricken 1956 | ||
| T-184 (ex-YMS462) | Hiltebrant, Kingston, USA | 4.1943 | 11.10.1943 | 6.1944 // 4.1945 | stricken 1956 | ||
| T-185 (ex-YMS448) | Robert Jacob, New York, USA | 6.1943 | 27.3.1944 | 7.1944 // 4.1945 | stricken 1956 | ||
| T-186 (ex-YMS469) | Gibbs Gas Engine, Jacksonville, USA | 7.1943 | 17.3.1944 | 9.1944 // 4.1945 | stricken 1956 | ||
| T-187 (ex-YMS465) | Gibbs Gas Engine, Jacksonville, USA | 6.1943 | 4.1.1944 | 6.1944 // 5.1945 | stricken 1956 | ||
| T-188 (ex-YMS464) | Gibbs Gas Engine, Jacksonville, USA | 5.1943 | 9.12.1943 | 6.1944 // 5.1945 | stricken 1956 | ||
| T-189 (ex-YMS453) | Greenport Basin, USA | 7.1943 | 2.10.1943 | 6.1944 // 5.1945 | stricken 1956 | ||
| T-190 (ex-YMS455) | Greenport Basin, USA | 8.1943 | 13.11.1943 | 7.1944 // 5.1945 | stricken 1956 | ||
| T-191 (ex-YMS456) | Greenport Basin, USA | 9.1943 | 11.12.1943 | 8.1944 // 5.1945 | stricken 1956 | ||
| T-192 (ex-YMS466) | Gibbs Gas Engine, Jacksonville, USA | 6.1943 | 22.1.1944 | 7.1944 // 5.1945 | stricken 1956 | ||
| T-521 (ex-YMS59) | Gibbs Gas Engine, Jacksonville, USA | 7.1941 | 30.12.1941 | 4.1942 // 6.1945 | stricken 7.1956 | ||
| T-522 (ex-YMS143) | San Diego Marine, USA | 4.1942 | 30.6.1942 | 2.1943 // 5.1945 | stricken 7.1956 | ||
| T-523 (ex-YMS144) | San Diego Marine, USA | 4.1942 | 30.7.1942 | 3.1943 // 5.1945 | CTL 15.10.1945 | ||
| T-524 (ex-YMS145) | San Diego Marine, USA | 5.1942 | 7.9.1942 | 4.1943 // 5.1945 | stricken 6.1956 | ||
| T-525 (ex-YMS428) | Mojean & Ericson, Tacoma, USA | 2.1944 | 5.6.1944 | 1.1945 // 5.1945 | stricken 7.1956 | ||
| T-526 (ex-YMS435) | J. M. Martinac, Tacoma, USA | 5.1944 | 30.9.1944 | 3.1945 // 5.1945 | stricken 7.1956 | ||
| T-527 (ex-YMS260) | South Coast, Newport Beach, USA | 5.1942 | 6.9.1942 | 4.1943 // 8.1945 | stricken 7.1956 | ||
| T-588 (ex-YMS178) | Henry C. Grebe, Chicago, USA | 9.1942 | 24.4.1943 | 7.1943 // 7.1945 | receiving vessel 2.1956 | ||
| T-589 (ex-YMS237) | Stadium, Cleveland, USA | 6.1942 | 7.9.1942 | 11.1942 // 7.1945 | stricken 7.1956 | ||
| T-590 (ex-YMS75) | Weaver, Orange, USA | 7.1941 | 26.5.1942 | 2.1943 // 7.1945 | stricken 6.1956 | ||
| T-591 (ex-YMS241) | Tacoma Boat, USA | 5.1942 | 7.9.1942 | 2.1943 // 7.1945 | survey vessel 6.1947 | ||
| T-592 (ex-YMS42) | Wheeler, Brooklyn, USA | 6.1941 | 17.3.1942 | 4.1942 // 7.1945 | stricken 10.1955 | ||
| T-593 (ex-YMS(C)38, ex-YMS38) | Hiltebrant, Kingston, USA | 5.1941 | 24.1.1942 | 4.1942 // 7.1945 | stricken 9.1955 | ||
| T-594 (ex-YMS139) | Astoria Marine, USA | 1.1943 | 19.5.1943 | 6.1943 // 7.1945 | stricken 9.1955 | ||
| T-595 (ex-YMS184) | Greenport Basin, USA | 5.1942 | 18.7.1942 | 1.1943 // 7.1945 | stricken 10.1955 | ||
| T-596 (ex-YMS216) | J. M. Martinac, Tacoma, USA | 6.1942 | 17.10.1942 | 2.1943 // 7.1945 | stricken 10.1955 | ||
| T-597 (ex-YMS272) | Bellingham Iron Wks, USA | 7.1942 | 14.11.1942 | 5.1943 // 7.1945 | survey vessel 6.1947 | ||
| T-598 (ex-YMS273) | Bellingham Iron Wks, USA | 7.1942 | 26.12.1942 | 7.1943 // 7.1945 | stricken 7.1956 | ||
| T-599 (ex-YMS295) | Associated, Seattle, USA | 7.1943 | 11.8.1943 | 11.1943 // 7.1945 | stricken 6.1956 | ||
| T-600 (ex-YMS288) | Associated, Seattle, USA | 8.1942 | 28.11.1942 | 3.1943 // 8.1945 | stricken 6.1956 | ||
| T-601 (ex-YMS266) | Kruse & Banks, North Bend, USA | 5.1942 | 24.12.1942 | 4.1943 // 8.1945 | receiving vessel 2.1956 | ||
| T-602 (ex-YMS100) | Astoria Marine, USA | 7.1941 | 12.4.1942 | 6.1942 // 8.1945 | stricken 6.1956 | ||
| T-603 (ex-YMS33) | Hiltebrant, Kingston, USA | 5.1941 | 8.10.1941 | 6.1942 // 8.1945 | receiving vessel 2.1956 | ||
| T-604 (ex-YMS85) | Henry C. Grebe, Chicago, USA | 6.1941 | 19.3.1942 | 6.1942 // 8.1945 | stricken 6.1956 | ||
| T-605 (ex-YMS301) | William F. Stone, Oakland, USA | 11.1942 | 1.5.1943 | 9.1943 // 8.1945 | to China 2.1955 | ||
| T-606 (ex-YMS135) | Astoria Marine, USA | 5.1942 | 26.12.1942 | 2.1943 // 8.1945 | to China 2.1955 | ||
| T-607 (ex-YMS332) | Ballard, Seattle, USA | 3.1943 | 5.6.1943 | 10.1943 // 8.1945 | to China 2.1955 | ||
| T-608 (ex-YMS88) | South Coast, Newport Beach, USA | 6.1941 | 18.10.1941 | 5.1942 // 8.1945 | to China 2.1955 | ||
| T-609 (ex-YMS180) | Henry C. Grebe, Chicago, USA | 10.1942 | 5.6.1943 | 8.1943 // 8.1945 | to China 2.1955 | ||
| T-610 (ex-YMS285) | Northwestern, Bellingham, USA | 6.1942 | 20.3.1943 | 6.1943 // 9.1945 | sunk 15.10.1945 | ||
| T-611 (ex-YMS287) | Associated, Seattle, USA | 7.1942 | 27.10.1942 | 3.1943 // 9.1945 | to China 2.1955 |
Technical data
| Displacement standard, t | 270 |
|---|---|
| Displacement full, t | 320 |
| Length, m | 39.6 wl 41.5 oa |
| Breadth, m | 7.47 |
| Draught, m | 2.36 full load |
| No of shafts | 2 |
| Machinery | 2 diesels |
| Power, h. p. | 800 |
| Max speed, kts | 14 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 2000(12) |
| Armament | 1 x 1 - 76/50 Mk 20/21, 2 x 1 - 20/70 Mk 4, 2 DCT, 2 DCR, mechanical, magnetic, acoustic minesweeping gear |
| Electronic equipment | presumably SF or SO or SU radar |
| Complement | 60 |
Standard scale images
T-188 1945
Graphics

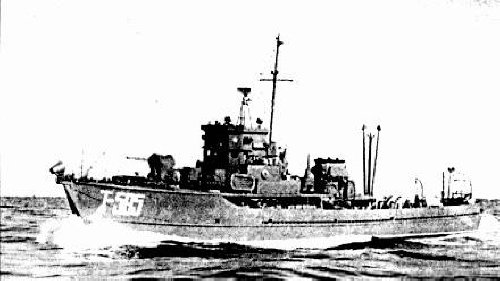

T-595
Project history
USN YMS class motor minesweepers, transferred on lend-lease. Minesweepers of different series differed by funnel number: first series ships (YMS1-134) had two funnels, second (YMS135-445, 480, 481) had one, and third series (YMS446-479) had no funnel.
Modernizations
None.
Naval service
T-523 and T-610 were lost on Japanese mines 15.10.1945.
