T-108 minesweepers (1942 / 1942)





T-110

Ships


Name No Yard No Builder Laid down Launched Comp Fate
T-108 (ex-MMS90)     John Morris, Gosport, UK   25.11.1941 6.1942 // 10.1942 diving tender 5.1951
T-109 (ex-MMS203)     Frank Curtis, Totnes, UK   13.4.1942 7/1942 // 10.1942 foundered 22.11.1944
T-110 (ex-MMS212)     Humphrey & Smith, Grimsby, UK   23.4.1942 6/1942 // 10.1942 diving tender 3.1951


Technical data


Displacement standard, t255
Displacement full, t295
Length, m36.4
Breadth, m7.14
Draught, m2.67 deep load
No of shafts1
Machinery

1 diesel

Power, h. p.

375 - 500

Max speed, kts

10 - 11

Fuel, t

diesel oil 24 - 26

Endurance, nm(kts)2400(9.5)
Armament

1 x 1 - 20/70 Oerlikon Mk II/IV, 1 x 2 - 12.7/62, mechanical, magnetic, acoustic minesweeping gear

Complement20


Standard scale images


<i>T-110</i> 1942
T-110 1942


Graphics

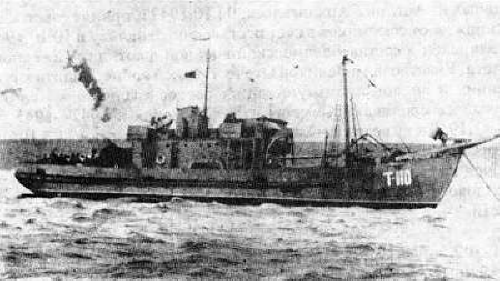

<i>T-110</i>
T-110


Project history

British 105-ft Admiralty motor minesweepers, transferred by lend-lease.

Modernizations

None.

Naval service

T-109 was lost 22.11.1944 during a storm at Sangeysky Island in Barents sea.
