MT-434 seagoing minesweeper (project 1332) (1973/1984)
MT-434
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| МТ-434 [MT-434] | 301 | Baltija, Klaipeda // Krasnaya Kuznitsa, Arkhangelsk | 30.9.1973 // 13.8.1984 | stricken 2018 |
Technical data
| Displacement standard, t | 1290 |
|---|---|
| Displacement full, t | 1940 |
| Length, m | 58.8 |
| Breadth, m | 13.0 |
| Draught, m | 4.83 |
| No of shafts | 1 |
| Machinery | 1 Škoda 6L525 IIPS diesel |
| Power, h. p. | 2200 |
| Max speed, kts | 13.3 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 10000(13) |
| Armament | 2 x 2 - 25/82 2M-3M, 2 x 7 - 55 MRG-1 Ogonyok grenade launchers, minesweeping gear |
| Electronic equipment | radar |
| Complement | 39 |
Graphics

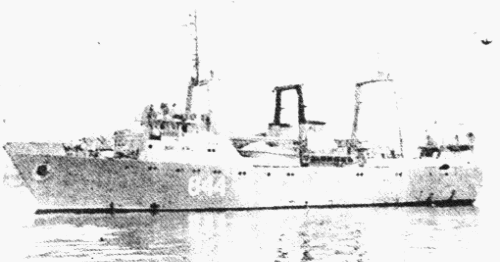

MT-434
Project history
Former trawler, converted to minesweeper.
Modernizations
None.
Naval service
No significant events.
