KT-62 minesweeping boats (project T361) (1951 - 1961), SK-... patrol craft (project D361) (1951 - 1960))







Ships


Names Builders Completed Losses Transfers Discarding

project T361:

115 boats (inc.

KT-95, 5.1966- РТ-95 [RT-95]

KT-99, 5.1966- РТ-99 [RT-99]

KT-102, 5.1966- РТ-102 [RT-102]

KT-105, 5.1966- РТ-105 [RT-105]

KT-107, 5.1966- РТ-107 [RT-107]

KT-192, 5.1966- РТ-192 [RT-192]

KT-673, 5.1966- РТ-673 [RT-673]

KT-1233, 5.1966- РТ-1233 [RT-1233]

KT-1254, 5.1966- РТ-1254 [RT-1254]

KT-1255, 5.1966- РТ-1255 [RT-1255]

KT-1259, 5.1966- РТ-1259 [RT-1259]

KT-1346, 5.1966- РТ-1346 [RT-1346]

KT-1400, 5.1966- РТ-1400 [RT-1400]

KT-1401, 5.1966- РТ-1401 [RT-1401]

KT-1403, 5.1966- РТ-1403 [RT-1403]

KT-1404, 5.1966- РТ-1404 [RT-1404]

KT-1420,, 5.1966- РТ-1420 [RT-1420]

project D361:

~ 100 boats

(СК-... [SK-...])

789 Yd, Petrozavodsk: pr. T361, D361

363 Yd, Pontonnyy: pr. T361

640 Yd, Sosnovka: pr. T361

Stocznia Północna, Gdańsk, Poland: pr. T361 (100 boats)

1951 - 1961: pr. T361 (115 boats)

1950s-1960s: pr. D361

none

Albania, early 1960s:

Cuba (1): 1978- 1 pr. T361

Egypt (2): 1968- 2 pr. T361

Nicaragua (4): 1972- 4 pr. T361

Vietnam (5): 1980- 5 pr. T361

1970s-1990s: pr. T361, D361

~40 pr. T361 were in service in 1981

~25 pr. T361 were in service in 1995



Technical data


Displacement standard, t

pr. T361: 19

Displacement full, t

pr. T361: 20

pr. D361: 18

Length, m

15.8

Breadth, m

3.40

Draught, m

0.90

No of shafts

2

Machinery

2 3D6S diesels

Power, h. p.

300

Max speed, kts

pr. T361: 11.6

pr. D361: 14

Fuel, t

diesel oil

Endurance, nm(kts)

200(8)

Armament

pr. T361: 1 x 2 - 14.5/89, KT-1 mechanical or SEMT-1 magnetic or BAT-2 acoustic minesweeping gear

pr. D361: 1 x 2 - 12.7/79

Complement

9



Standard scale images

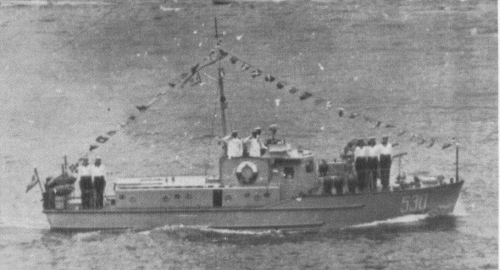

<i>KT-1259 </i>1960
KT-1259 1960


Graphics





Project history

Small minesweeping boats (19.5.1966 rerated as inshore minesweepers) and patrol boats. Wooden hulls.

Modernizations

None.

Naval service

No significant events.
