DON minelayer (1941 / 1944)





Don 1945

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Дон [Don] (ex-Amiral Murgesku)     Santieri Galati, Galats, Romania 8.1938 14.6.1939 5.1941 // 9.1944 TS 4.1945, depot ship 1.1947


Technical data


Displacement standard, t

812

Displacement full, t

~950

Length, m

76.9

Breadth, m

9.10

Draught, m

2.50

No of shafts

2

Machinery

2 Krupp-Germania diesels

Power, h. p.

2200

Max speed, kts

16

Fuel, t

diesel oil

Endurance, nm(kts)3400(13)
Armament

2 x 1 - 105/42 SK C/32, 2 x 1 - 37/80 SK C/30, 2 x 1 - 20/70 Oerlikon Mk IV, 2 x 1 - 13.2/79, 135 mines, 2 DCT

Complement

105



Graphics

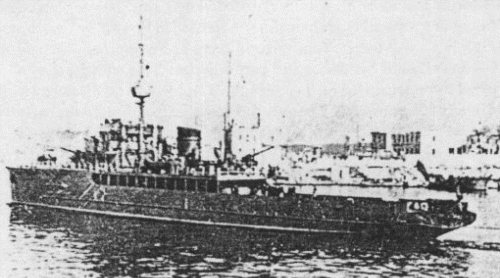

<i>Don</i> 1945
Don 1945


Project history

Former Romanian minelayer Amiral Murgescu, 5.9.1944 captured by Soviet troops at Constanza and 14.9.1944 commissioned by Soviet Navy as Don.

Modernizations

None.

Naval service

2.4.1945 Don was converted to TS, 18.1.1947 to depot ship, 9.2.1948 to command ship; 7.5.1956 she was disarmed and converted to barrack ship PKZ-107, 4.1.1958 to repair vessel PM-76, since 8.6.1966 PMR-76. She was excluded from fleet list 27.5.1988, sold for scrap 4.7.1988.
