IVAN ROGOV large landing ships (project 1174) (1978 - 1990)

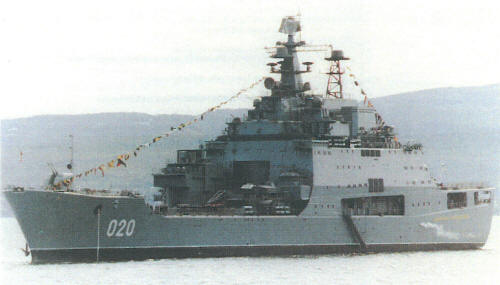

Mitrofan Moskalenko 1996

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Иван Рогов [Ivan Rogov]   101 Yantar', Kaliningrad 9/1973   15.6.1978 stricken 8.1995
Александр Николаев [Aleksandr Nikolaev]   102 Yantar', Kaliningrad 3/1976   30.12.1982 stricken 12.2006
Митрофан Москаленко [Mitrofan Moskalenko]   103 Yantar', Kaliningrad 5/1984   23.9.1990 stricken 12.2006


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate Иван Рогов [Ivan Rogov]   101 Yantar', Kaliningrad 9/1973   15.6.1978 stricken 8.1995 Александр Николаев [Aleksandr Nikolaev]   102 Yantar', Kaliningrad 3/1976   30.12.1982 stricken 12.2006 Митрофан Москаленко [Mitrofan Moskalenko]   103 Yantar', Kaliningrad 5/1984   23.9.1990 stricken 12.2006

Technical data


Displacement standard, t

8600

Displacement normal, t

13880

Length, m

157.0

Breadth, m

23.8

Draught, m

5.00

No of shafts

2

Machinery

101: 2 M-12 gas turbines

102, 103: 2 M-12A gas turbines

Power, h. p.

36000

Max speed, kts

21

Fuel, t

gas turbine oil

Endurance, nm(kts)

12500(14)

Armament

101: 1 x 2 Osa-M SAM (20 9M33), 1 x 2 - 76/59 AK-726, 4 x 6 - 30/54 AK-630, 1 x 40 - 122 MS-73 Grad-M RL (320), 1 x 7 - 55 MRG-1 Ogonyok grenade launcher, 4 helicopters (Ka-25PS)

102, 103: 1 x 2 Osa-MA SAM (20 9M33), 4 x 4 Strela-3 SAM (16), 1 x 2 - 76/59 AK-726, 4 x 6 - 30/54 AK-630, 1 x 40 - 122 MS-73 Grad-M RL (320), 1 x 7 - 55 MRG-1 Ogonyok grenade launcher, 4 helicopters (Ka-29)

Military load

6 pr. 1176 or 6 pr. 1785 or 3 pr. 1206 landing craft, 23 tanks, 440 troops or 1730 t of cargo

Electronic equipment

101: MR-310 Angara, 4R-33, MR-105 Turel', 2x MR-123 Vympel-A, Volga radars, MG-7 Braslet sonar, MP-401 Start ECM suite

102: MR-310 Angara, 4R-33A, MR-105 Turel', 2x MR-123 Vympel-A, Volga radars, MG-7 Braslet sonar, MP-401 Start ECM suite

103: MR-750 Fregat-M2, 4R-33A, MR-105 Turel', 2x MR-123 Vympel-A, 2x MR-212/201 Vaygach-U radars, MG-7 Braslet sonar, MP-401 Start ECM suite

Complement

250



Standard scale images

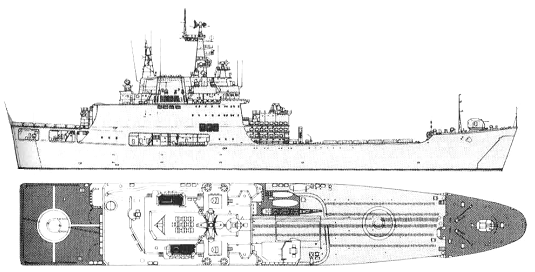

<i>Mitrofan Moskalenko </i>2000
Mitrofan Moskalenko 2000


Graphics


<i>Mitrofan Moskalenko</i> 1996
Mitrofan Moskalenko 1996


Project history

When she appeared, Ivan Rogov appeared to presage a Soviet shift towards amphibious intervention overseas. She can carry a full naval infantry battalion including ten tanks and thirty APCs and has three unique pr. 1206 craft to put them ashore as well as four Karnov Ka-25 helicopters. She had an integral shore bombardment capability in her 122mm automatic RL. Sometimes she was compared with the US LPH, although the small hangar in the superstructure was in no way comparable with the standard US hangar deck. Below that deck there was a tank deck forward, and a well deck (with a stern gate) aft. In this sense the concept matches that of the LHA, albeit on a much smaller scale. Unlike the US ship, however, this one beaches to discharge her vehicles through a bow door.

Modernizations

1985, Ivan Rogov: - 4 Ka-25PS helicopters; + 4 x 4 Strela-3 SAM (16), 4 Ka-29 helicopters

Naval service

No significant events.
