DK-17 small landing ships (projects 450, 450bis) (1951 - 1957)

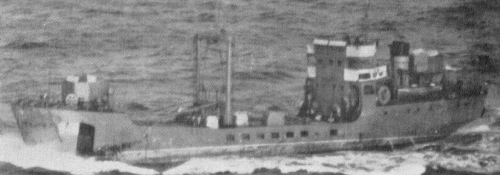

Pr. 450bis 1973
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate | Modification |
|---|---|---|---|---|---|---|---|---|
| ДК-17 [DK-17], 1963- МДК-17 [MDK-17] | 369 Yd, Kokuy | 1951-55 | stricken 1970s-90s | Project 450 | ||||
| ДК-23 [DK-23], 1963- МДК-23 [MDK-23] | 369 Yd, Kokuy | 1951-55 | stricken 1970s-90s | Project 450 | ||||
| ДК-41 [DK-41], 1963- МДК-41 [MDK-41] | 369 Yd, Kokuy | 1951-55 | stricken 1970s-90s | Project 450 | ||||
| ДК-46 [DK-46], 1963- МДК-46 [MDK-46] | 369 Yd, Kokuy | 1951-55 | stricken 1970s-90s | Project 450 | ||||
| ДК-47 [DK-47], 1963- МДК-47 [MDK-47] | 369 Yd, Kokuy | 1951-55 | stricken 1970s-90s | Project 450 | ||||
| ДК-48 [DK-48], 1963- МДК-48 [MDK-48] | 369 Yd, Kokuy | 1952 | stricken 1970s-90s | Project 450 | ||||
| ДК-49 [DK-49], 1963- МДК-49 [MDK-49] | 369 Yd, Kokuy | 1951-55 | cargo vessel 1970s-90s | Project 450 | ||||
| ДК-50 [DK-50], 1963- МДК-50 [MDK-50] | 369 Yd, Kokuy | 1951-55 | survey vessel 1972 | Project 450 | ||||
| ДК-52 [DK-52], 1963- МДК-52 [MDK-52] | 369 Yd, Kokuy | 1951-55 | target 1970s-90s | Project 450 | ||||
| ДК-53 [DK-53], 1963- МДК-53 [MDK-53] | 369 Yd, Kokuy | 1951-55 | target 1970s-90s | Project 450 | ||||
| ДК-114 [DK-114], 1963- МДК-114 [MDK-114] | 21 | 369 Yd, Kokuy | 1954 | stricken 1970 | Project 450 | |||
| ДК-115 [DK-115], 1963- МДК-115 [MDK-115] | 22 | 369 Yd, Kokuy | 1954 | stricken 1970 | Project 450 | |||
| ДК-116 [DK-116], 1963- МДК-116 [MDK-116] | 369 Yd, Kokuy | 1951-55 | stricken 1970s-90s | Project 450 | ||||
| ДК-122 [DK-122], 1963- МДК-122 [MDK-122] | 369 Yd, Kokuy | 1951-55 | stricken 1970s-90s | Project 450 | ||||
| ДК-123 [DK-123], 1963- МДК-123 [MDK-123] | 369 Yd, Kokuy | 1951-55 | stricken 1970s-90s | Project 450 | ||||
| ДК-124 [DK-124], 1963- МДК-124 [MDK-124] | 369 Yd, Kokuy | 1951-55 | stricken 1970 | Project 450 | ||||
| ДК-130 [DK-130], 1963- МДК-130 [MDK-130] | 369 Yd, Kokuy | 1951-55 | stricken 1970s-90s | Project 450 | ||||
| ДК-133 [DK-133], 1963- МДК-133 [MDK-133] | 369 Yd, Kokuy | 1951-55 | stricken 1970s-90s | Project 450 | ||||
| ДК-144 [DK-144], 1963- МДК-144 [MDK-144] | 369 Yd, Kokuy | 1951-55 | target 1970s-90s | Project 450 | ||||
| ДК-145 [DK-145], 1963- МДК-145 [MDK-145] | 369 Yd, Kokuy | 1951-55 | target 1970s-90s | Project 450 | ||||
| ДК-147 [DK-147], 1963- МДК-147 [MDK-147] | 369 Yd, Kokuy | 1951-55 | stricken 1970s-90s | Project 450 | ||||
| ДК-148 [DK-148], 1963- МДК-148 [MDK-148] | 369 Yd, Kokuy | 1951-55 | stricken 1970s-90s | Project 450 | ||||
| ДК-149 [DK-149], 1963- МДК-149 [MDK-149] | 369 Yd, Kokuy | 1951-55 | stricken 1970s-90s | Project 450 | ||||
| ДК-150 [DK-150], 1963- МДК-150 [MDK-150] | 369 Yd, Kokuy | 1951-55 | stricken 1970s-90s | Project 450 | ||||
| ДК-152 [DK-152], 1963- МДК-152 [MDK-152] | 369 Yd, Kokuy | 1951-55 | test vessel 1970s-90s | Project 450 | ||||
| ДК-118 [DK-118], 1963- МДК-118 [MDK-118] | 728 | 196 Yd, Leningrad | 25.4.1956 | 31.10.1956 | 29.6.1957 | cargo vessel 1960s | Project 450bis | |
| ДК-126 [DK-126], 1963- МДК-126 [MDK-126] | 730 | 196 Yd, Leningrad | 23.8.1956 | 26.12.1956 | 31.7.1957 | stricken 1970s-90s | Project 450bis | |
| ДК-31 [DK-31], 1963- МДК-31 [MDK-31] | 731 | 196 Yd, Leningrad | 23.8.1956 | 26.12.1956 | 31.7.1957 | stricken 1970s-90s | Project 450bis | |
| ДК-128 [DK-128], 1963- МДК-128 [MDK-128] | 196 Yd, Leningrad or 369 Yd, Kokuy | 1955-57 | stricken 1970s-90s | Project 450bis | ||||
| ДК-131 [DK-131], 1963- МДК-131 [MDK-131] | 196 Yd, Leningrad or 369 Yd, Kokuy | 1955-57 | stricken 1970s-90s | Project 450bis | ||||
| ДК-132 [DK-132], 1963- МДК-132 [MDK-132] | 196 Yd, Leningrad or 369 Yd, Kokuy | 1955-57 | stricken 1970s-90s | Project 450bis | ||||
| ДК-134 [DK-134], 1963- МДК-134 [MDK-134] | 196 Yd, Leningrad or 369 Yd, Kokuy | 1955-57 | stricken 1970s-90s | Project 450bis | ||||
| ДК-135 [DK-135], 1963- МДК-135 [MDK-135] | 196 Yd, Leningrad or 369 Yd, Kokuy | 1955-57 | stricken 1970s-90s | Project 450bis | ||||
| ДК-136 [DK-136], 1963- МДК-136 [MDK-136] | 196 Yd, Leningrad or 369 Yd, Kokuy | 1955-57 | stricken 1970s-90s | Project 450bis | ||||
| ДК-142 [DK-142], 1963- МДК-142 [MDK-142] | 196 Yd, Leningrad or 369 Yd, Kokuy | 1955-57 | stricken 1970s-90s | Project 450bis | ||||
| ДК-143 [DK-143], 1963- МДК-143 [MDK-143] | 196 Yd, Leningrad or 369 Yd, Kokuy | 1955-57 | stricken 1970s-90s | Project 450bis | ||||
| ДК-146 [DK-146] | 58 | 369 Yd, Kokuy | 1956 | cargo vessel 1960 | Project 450bis | |||
| ДК-151 [DK-151], 1963- МДК-151 [MDK-151] | 196 Yd, Leningrad or 369 Yd, Kokuy | 1955-57 | stricken 1970s-90s | Project 450bis |
100 - 1000 t displacement/ BRT tonnage vessels
Technical data
| Displacement standard, t | pr. 450: 406 pr. 450bis: 428 |
|---|---|
| Displacement normal, t | pr. 450: 660 pr. 450bis: 716 |
| Length, m | pr. 450: 52.4 pr. 450bis: 52.5 |
| Breadth, m | pr. 450: 8.20 pr. 450bis: 8.23 |
| Draught, m | pr. 450: 2.20 pr. 450bis: 2.53 |
| No of shafts | 2 |
| Machinery | pr. 450: 2 3D12 diesels pr. 450bis: 2 8D12 diesels |
| Power, h. p. | pr. 450: 600 pr. 450bis: 900 |
| Max speed, kts | pr. 450: 9.5 pr. 450bis: 10.1 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | pr. 450: 1600(7) pr. 450bis: 1300(7) |
| Armament | 2 x 2 - 25/112 2M-3 |
| Military load | 3 medium tanks |
| Electronic equipment | Neptun radar |
| Complement | 28 |
Standard scale images
MDK-31 1970
DK-17 1955
Graphics
Pr. 450bis 1973
Project history
First specially-built Soviet amphibious ships. Could carry 200t of cargo.
Modernizations
None.
Naval service
5 ships of project 450bis were in reserve in 1982.
