NAVYPEDIA


Aleksandr Tortsev 1976

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate	Modification
БДК-10 [BDK-10], 2.1967- Воронежский комсомолец [Voronezhskiy Komsomolets], 2.1992- БДК-65 [BDK-65], 7.2003- Саратов [Saratov]	150	291	Yantar', Kaliningrad	5.2.1964	1.7.1964	18.8.1966	in service (2019)	group 1
БДК-6 [BDK-6], 11.1970- Крымский комсомолец [Krymskiy Komsomolets], 2.1992- БДК-6 [BDK-6]		292	Yantar', Kaliningrad	4.7.1964	15.2.1965	30.12.1966	stricken 3.1992	group 1
БДК-13 [BDK-13], 6.1972- Томский комсомолец [Tomskiy Komsomolets], 2.1992- БДК-25 [BDK-25]		293	Yantar', Kaliningrad	18.2.1965	26.3.1966	30.9.1967	stricken 7.1994	group 1
БДК-62 [BDK-62], 9.1981- Комсомолец Карелии [Komsomolets Karelii], 2.1992- БДК-62 [BDK-62]		294	Yantar', Kaliningrad	5.8.1966	1.3.1967	29.12.1967	stricken 12.1997	group 1
БДК-66 [BDK-66], 2.1975- Сергей Лазо [Sergey Lazo]		295	Yantar', Kaliningrad	7.3.1967	28.8.1967	27.9.1968	stricken 7.1994	group 2
БДК-69 [BDK-69], 10.2002- Орск [Orsk]	148	296	Yantar', Kaliningrad	30.8.1967	29.2.1968	31.12.1968	in service (2019)	group 2
БДК-77 [BDK-77], 10.1972- 50 лет шефства ВЛКСМ [50 Let Shefstva VLKSM], 2.1992- БДК-80 [BDK-80]		297	Yantar', Kaliningrad	12.3.1968	31.8.1969	30.9.1969	stricken 7.1994	group 3
Донецкий шахтёр [Donetskiy Shakhtyor]		298	Yantar', Kaliningrad	5.9.1968	10.3.1969	31.12.1969	stricken 4.2002	group 3
Красная Пресня [Krasnaya Presnya] (ex-БДК-100 [BDK-100])		299	Yantar', Kaliningrad	18.3.1969	11.10.1969	30.9.1970	stricken 6.1993	group 3
БДК-104 [BDK-104], 5.1982- Илья Азаров [Ilya Azarov]		300	Yantar', Kaliningrad	17.10.1969	31.3.1970	10.6.1971	to Ukraine 1.1996 (Рiвне [Rivne])	group 3
Александр Торцев [Aleksandr Tortsev]		301	Yantar', Kaliningrad	6.4.1970	27.11.1970	31.12.1971	stricken 7.1994	group 3
Пётр Ильичёв [Piotr Ilyichov]		302	Yantar', Kaliningrad	30.11.1970	30.8.1971	29.12.1972	stricken 6.1993	group 3
Николай Вилков [Nikolay Vilkov]	081	303	Yantar', Kaliningrad	30.9.1971	30.11.1973	30.7.1974	in service (2019)	group 4
Николай Фильченков [Nikolay Filchenkov]	152	304	Yantar', Kaliningrad	30.1.1974	29.3.1975	30.12.1975	in service (2019)	group 4
Николай Голубец [Nikolay Golubets]		305	Yantar', Kaliningrad	---	---	---	cancelled	group 4

100 - 1000 t displacement/ BRT tonnage vessels

Name No Yard No Builder Laid down Launched Comp Fate group 1 БДК-10 [BDK-10], 2.1967- Воронежский комсомолец [Voronezhskiy Komsomolets], 2.1992- БДК-65 [BDK-65], 7.2003- Саратов [Saratov] 150 291 Yantar', Kaliningrad 5.2.1964 1.7.1964 18.8.1966 in service (2019) БДК-6 [BDK-6], 11.1970- Крымский комсомолец [Krymskiy Komsomolets], 2.1992- БДК-6 [BDK-6]   292 Yantar', Kaliningrad 4.7.1964 15.2.1965 30.12.1966 stricken 3.1992 БДК-13 [BDK-13], 6.1972- Томский комсомолец [Tomskiy Komsomolets], 2.1992- БДК-25 [BDK-25]   293 Yantar', Kaliningrad 18.2.1965 26.3.1966 30.9.1967 stricken 7.1994 БДК-62 [BDK-62], 9.1981- Комсомолец Карелии [Komsomolets Karelii], 2.1992- БДК-62 [BDK-62]   294 Yantar', Kaliningrad 5.8.1966 1.3.1967 29.12.1967 stricken 12.1997 group 2 БДК-66 [BDK-66], 2.1975- Сергей Лазо [Sergey Lazo]   295 Yantar', Kaliningrad 7.3.1967 28.8.1967 27.9.1968 stricken 7.1994 БДК-69 [BDK-69], 10.2002- Орск [Orsk] 148 296 Yantar', Kaliningrad 30.8.1967 29.2.1968 31.12.1968 in service (2019) group 3 БДК-77 [BDK-77], 10.1972- 50 лет шефства ВЛКСМ [50 Let Shefstva VLKSM], 2.1992- БДК-80 [BDK-80]   297 Yantar', Kaliningrad 12.3.1968 31.8.1969 30.9.1969 stricken 7.1994 Донецкий шахтёр [Donetskiy Shakhtyor]   298 Yantar', Kaliningrad 5.9.1968 10.3.1969 31.12.1969 stricken 4.2002 Красная Пресня [Krasnaya Presnya] (ex-БДК-100 [BDK-100])   299 Yantar', Kaliningrad 18.3.1969 11.10.1969 30.9.1970 stricken 6.1993 БДК-104 [BDK-104], 5.1982- Илья Азаров [Ilya Azarov]   300 Yantar', Kaliningrad 17.10.1969 31.3.1970 10.6.1971 to Ukraine 1.1996 (Рiвне [Rivne]) Александр Торцев [Aleksandr Tortsev]   301 Yantar', Kaliningrad 6.4.1970 27.11.1970 31.12.1971 stricken 7.1994 Пётр Ильичёв [Piotr Ilyichov]   302 Yantar', Kaliningrad 30.11.1970 30.8.1971 29.12.1972 stricken 6.1993 group 4 Николай Вилков [Nikolay Vilkov] 081 303 Yantar', Kaliningrad 30.9.1971 30.11.1973 30.7.1974 in service (2019) Николай Фильченков [Nikolay Filchenkov] 152 304 Yantar', Kaliningrad 30.1.1974 29.3.1975 30.12.1975 in service (2019) Николай Голубец [Nikolay Golubets]   305 Yantar', Kaliningrad --- --- --- cancelled

Technical data

Displacement standard, t	3040
Displacement normal, t	4650
Length, m	113.1
Breadth, m	15.6
Draught, m	4.50
No of shafts	2
Machinery	291-296: 2 58A diesels 297-302: 2 58A-3 diesels 303-305: 2 58A-4 diesels
Power, h. p.	9000
Max speed, kts	16.5
Fuel, t	diesel oil
Endurance, nm(kts)	4800(16)
Armament	291, 292, 295-297: 1 x 2 - 57/75 ZIF-31B 293, 294: 1 x 2 - 57/75 ZIF-31B, 2 x 1 - 45/69 21KM 298-300, 302: 1 x 2 - 57/75 ZIF-31B, 2 x 40 - 122 MS-73 Grad M RL 301: 1 x 2 - 57/75 ZIF-31B, 2 x 1 - 45/69 21KM, 2 x 40 - 122 MS-73 Grad M RL 303-305: 1 x 2 - 57/75 ZIF-31B, 2 x 2 - 25/112 2M-3M, 2 x 40 - 122 MS-73 Grad M RL
Military load	291-296: 20 medium tanks or 47 AFV or 52 trucks, 313 troops 297-305: 20 medium tanks or 47 AFV or 52 trucks, 440 troops
Electronic equipment	1 - 2 Don radars
Complement	69

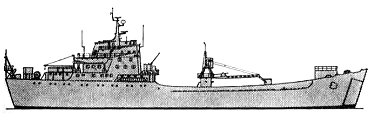

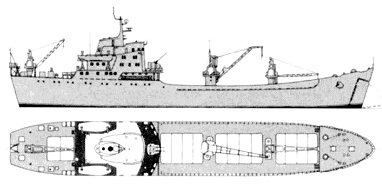

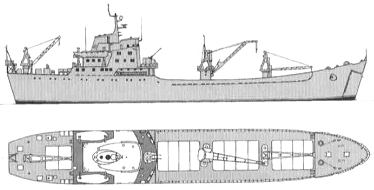

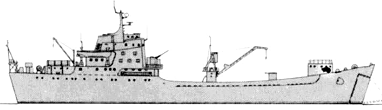

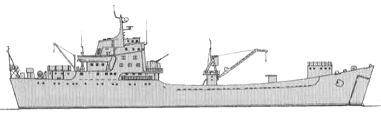

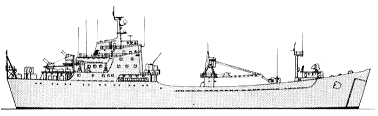

Standard scale images

Graphics

Project history

All designed by TsKB-50.

Soviet designation, BDK, large landing ship. These ships have bow and stern ramps for unloading vehicles, and are essentially of freighter configuration. Can carry 1500t of cargo. Early units have three cranes (15t and two 5t); later ships have only one crane. Later units have an enclosed bridge and a RL forward.

Modernizations

1970s, Voronezhskiy Komsomolets, Krymskiy Komsomolets, Tomskiy Komsomolets, BDK-69, 50 Let Shefstva VLKSM, Donetskiy Shakhtyor, Krasnaya Presnya, BDK-104, Aleksandr Tortsev, Nikolay Vilkov, Nikolay Filchenkov: + 3 x 2 Strela-3 SAM (24 9M36)

1970s, Piotr Ilyichov: + 2 x 2 Strela-3 SAM (16 9M36)

1980s, Nikolay Vilkov: + 2 x 7 - 55 MRG-1 GL

1980s, Tomskiy Komsomolets: + 2 x 1 - 45/69 21KM

1990s, BDK-65: + MR-231 Pal radar

Naval service

No significant events.
