ATAMAN PLATOV landing craft (project 21280) (2010-2015)

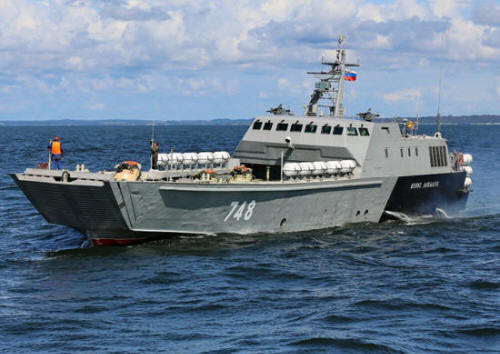

Denis Davydov 2014

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Атаман Платов [Ataman Platov] (ex-Д-105 [D-105]) 728 811 Volga, Nizhniy Novgorod 21.2.2006 7.2009 2010 in service (2019)
Иван Карцов [Ivan Kartsov] 685 4001 Vostochnaya verf', Vladivostok 2010 30.9.2013 11.6.2015 in service (2019)
Денис Давыдов [Denis Davydov] 758 701 SSZ Yaroslavl' 18.1.2012 26.7.2013 23.11.2014 in service (2019)
Лейтенант Римский-Корсаков [Leytenant Rimskiy-Korsakov] 754 702 SSZ Yaroslavl' 21.6.2012 10.4.2014 4.7.2015 in service (2019)
Мичман Лермонтов [Michman Lermontov] 757 703 SSZ Yaroslavl' 18.1.2013 5.6.2014 4.7.2015 in service (2019)


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate Атаман Платов [Ataman Platov] (ex-Д-105 [D-105]) 728 811 Volga, Nizhniy Novgorod 21.2.2006 7.2009 2010 in service (2019) Иван Карцов [Ivan Kartsov] 685 4001 Vostochnaya verf', Vladivostok 2010 30.9.2013 11.6.2015 in service (2019) Денис Давыдов [Denis Davydov] 758 701 SSZ Yaroslavl' 18.1.2012 26.7.2013 23.11.2014 in service (2019) Лейтенант Римский-Корсаков [Leytenant Rimskiy-Korsakov] 754 702 SSZ Yaroslavl' 21.6.2012 10.4.2014 4.7.2015 in service (2019) Мичман Лермонтов [Michman Lermontov] 757 703 SSZ Yaroslavl' 18.1.2013 5.6.2014 4.7.2015 in service (2019)

Technical data


Displacement standard, t
Displacement normal, t

280

Length, m

45.0

Breadth, m

8.60

Draught, m

2.20

No of shafts

2

Machinery

2 M507A-2-010M3 diesels

Power, h. p.

20000

Max speed, kts

40

Fuel, t

diesel oil

Endurance, nm(kts)
Armament

2 x 1 - 14.5/89

Military load

3 main battle tanks or 5 APCs and 50 troops or 1 tank and 90 troops or 140 t cargo

Electronic equipment

Pal-N-3 radar

Complement

6



Standard scale images


<i>Ataman Platov </i>2010
Ataman Platov 2010


Graphics


<i>Denis Davydov </i>2014
Denis Davydov 2014


Project history

Twice enlarged project 11770 (Serna) became project Dyugon'. Semiplating hull incorporates an air cavity to provide underhull lubrication. Aluminium alloy construction.

Modernizations

None.

Naval service

No significant events.
