NOVIK guard ship (project 12441)


Ships


Name No Yard No Builder Laid down Launched Comp Fate
Новик [Novik]   1900 Yantar', Kaliningrad 26.7.1997 2004 --- suspended 2000


Technical data


Displacement standard, t

2560

Displacement full, t

2900

Length, m

116.0 wl 121.0 oa

Breadth, m

14.1

Draught, m

9.30 max

No of shafts

2

Machinery

COGAG: 2 M-62M cruising gas turbines + 2 M-90 boost gas turbines

Power, h. p.

12000 + 37000 = 49000

Max speed, kts

31

Fuel, t

gas turbine oil

Endurance, nm(kts)

4800(12)

Armament

6 x 3 Oniks SSM (VLS, 18 Oniks), 4 x 8 Poliment SAM (VLS, 32 Poliment), 2 x 4 Medvedka ASuM (8 Medvedka), 1 x 1 - 100/59 A-190, 1 x 12 - 30/54 AK-630M1-2 Roy, 1 helicopter (Ka-27)

Electronic equipment

MR-750 Fregat-M2, Garpun, Vaygach, MR-123 Vympel, Redut radars, MGK-355MS Zvezda-1, Minotavr sonars, Vympel-R2 ECM suite, 4x PK-10 Smelyy, 2x PK-2 decoy launchers, Tron-Diplomat CCS

Complement

210

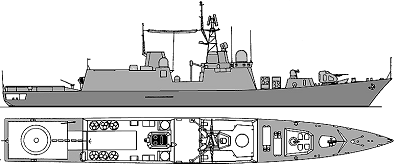

Standard scale images


<i>Novik</i>
Novik


Project history

Planned development of project 11660 with extended attack capabilities. Completion was planned in 2001 but in late 1990s building was suspended due to changes in naval conceptions. In 2007 it was decided to complete ship as TS with new name Borodino, but really building was never restarted. Planned Riurik and Peresvet were never laid down.
