MRK-5 small missile hydrofoil (project 1240) (1977)

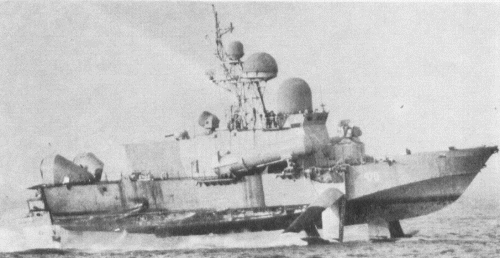

MRK-5 1979

Ships


Name No Yard No Builder Laid down Launched Comp Fate
МРК-5 [MRK-5]   41 Primorskiy SYd, Leningrad   1973 30.12.1977 stricken 1990


Technical data


Displacement standard, t

348

Displacement normal, t

432

Length, m

49.8 hull 56.6 max

Breadth, m

10.2 deck 23.5 foils

Draught, m

2.34 hull 8.00 foils

No of shafts

2 twin propellers / 2 water jets

Machinery

2 M10 gas turbines (on propellers) / 2 DRA-211 diesels (on water jets)

Power, h. p.

36000 / 2000

Max speed, kts

61

Fuel, t

diesel oil

Endurance, nm(kts)

1500(8.5)

Armament

2 x 2 P-120 Malakhit SSM (4 4K85), 1 x 2 Osa-M SAM (20 9M33), 1 x 6 - 30/54 AK-630M

Electronic equipment

Dubrava-1240, 4R-33, MR-123 Vympel, Lotsiya radars

Complement

34



Standard scale images


<i>MRK-5 </i>1980
MRK-5 1980


Graphics


<i>MRK-5</i> 1979
MRK-5 1979


Project history

Unlike earlier Soviet hydrofoils, this one had fully-submerged foils. They required advanced control systems, but should have confered very superior rough-water performance. In principle, MRK-5 would be comparable to the US Pegasus (PHM), although actual performance may have been very different. Propulsion was by propellers in pods on the after foils. Although displacement was less than half that of a Project 1234, Project 1240 had 4 Malakhit missiles and Osa SAM for self-defence.

Modernizations

None.

Naval service

No significant events.
