SOKOL torpedo boat (1895)





Sokol 1895

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Сокол [Sokol], 3.1902- Прыткий [Prytkiy]   998 Yarrow, Scotstoun, UK 11.1894 22.8.1895 10.1895 dispatch vessel 5.1915, torpedo boat 8.1918, stricken 8.1922


Technical data


Displacement normal, t

220

Displacement full, t240
Length, m

57.9

Breadth, m

5.64

Draught, m

2.29

No of shafts

2

Machinery

2 VTE, 8 Yarrow boilers

Power, h. p.

3800

Max speed, kts

29

Fuel, t

coal 53

Endurance, nm(kts)750(15)
Armament

1 x 1 - 75/48 Canet, 3 x 1 - 47/40 Hotchkiss, 2 x 1 - 381 TT

Complement

54



Standard scale images

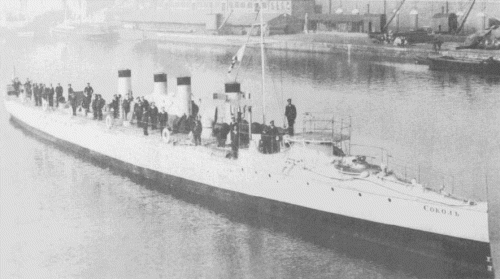

<i>Sokol</i> 1895
Sokol 1895


Graphics

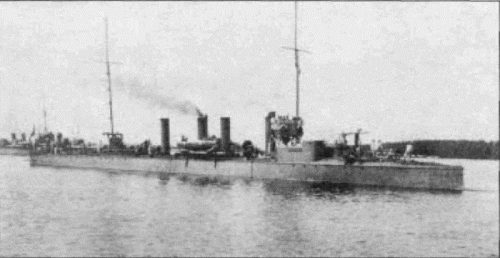

<i>Prytkiy</i> 1914 <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Prytkiy 1914 Many thanks to Wolfgang Stöhr for additional information on this page.
<i>Sokol</i> 1895
Sokol 1895


Project history

First torpedo boat destroyer of the Imperial Russian Navy. Rated as torpedo boat. Design of Yarrow. One of the world`s fastest early destroyers, reached at trials 30.2kts at 4500hp.

Modernizations

1910: - 3 x 1 - 47/40, 2 x 1 - 381 TT; + 1 x 1 - 75/48 Canet, 2 x 1 - 7.6/94, 2 x 1 - 450 TT, 10 mines

5/1915: - 2 x 1 - 450 TT

1916: + mechanical minesweeping gear

8/1918: + 2 x 1 - 450 TT

Naval service

No significant events.
