Primernyy Many thanks to Wolfgang Stöhr for additional information on this page.

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate

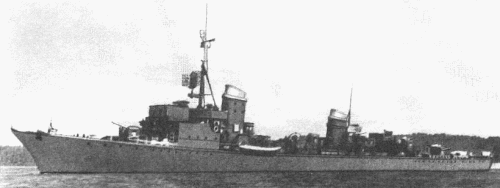

Примерный [Primernyy] (ex-T33)		1515	Schichau, Elbing, Germany	1.1943	4.9.1943	6.1944 // 1.1946	accommodation ship 11.1954

Technical data

Displacement standard, t	1294
Displacement full, t	1754
Length, m	97.0 wl 102.5 oa
Breadth, m	10.0
Draught, m	2.66 normal 3.22 max
No of shafts	2
Machinery	2 sets Wagner geared steam turbines, 4 Wagner boilers
Power, h. p.	29000
Max speed, kts	32.5
Fuel, t	oil 374
Endurance, nm(kts)	5000(19)
Armament	4 x 1 - 105/45 SK C/32, 2 x 2 - 37/69 FlaK M/42,1 x 4 - 20/65 C/38, 5 x 1 - 20/65 C/38, 2 x 3 - 533 TT, 2 DCT (32), 50 mines
Electronic equipment	FuMO 21, FuMO 63 radars, S-Gerät sonar, GHG hydrophone, FuMB3 Bali, FuMB 4 Sumatra ECM suites
Complement	206

Graphics

Project history

Former German torpedo boat of 1939 type transferred by reparations.

Modernizations

None.

Naval service

No significant events.
