KAPITAN SAKEN torpedo cruiser (1889)
Kapitan Saken
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Капитан Сакен [Kapitan Saken] | Nikolayev Admiralty | 1886 | 12.5.1889 | 12/1889 | auxiliary 4.1907 |
Technical data
| Displacement normal, t | 620 |
|---|---|
| Displacement full, t | 742 |
| Length, m | 69.4 pp 71.6 oa |
| Breadth, m | 7.42 |
| Draught, m | 3.12 max |
| No of shafts | 2 |
| Machinery | 2 VTE, 6 locomotive boilers |
| Power, h. p. | 3000 |
| Max speed, kts | 18.3 |
| Fuel, t | coal 97 |
| Endurance, nm(kts) | 1580(10) |
| Armour, mm | deck: 13 |
| Armament | 6 x 1 - 47/40 Hotchkiss, 4 x 5 - 37/17 Hotchkiss, 1 - 381 TT (bow), 2 x 1 - 381 TT (19 total) |
| Complement | 102 |
Standard scale images

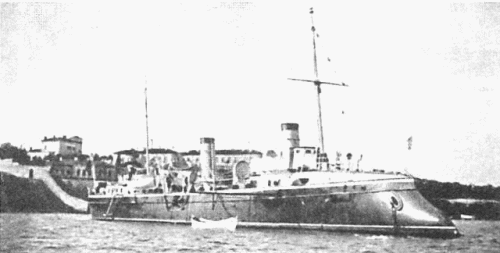

Kapitan Saken 1892
Graphics
Kapitan Saken
Project history
Development of Leytenant Ilyin.
Ship protection
There was 13mm protective deck.
Modernizations
1898: boilers were replaced by 6 Belleville
Naval service
No significant events.
