Ships

Name	No	Yard No	Builder	Laid down	Launched	Comm	Fate
Ульяновск [Ulyanovsk]		107	Black Sea Yd, Nikolayev	25.11.1988	---	---	cancelled 11.1991

Technical data

Displacement standard, t	62580
Displacement full, t	73400
Length, m	321.2
Breadth, m	79.5 fd
Draught, m	10.6 max
No of shafts	4
Machinery	4 sets GTZA-674 geared steam turbines, 4 KN-3-43 nuclear reactors
Power, h. p.	280000
Max speed, kts	29.5
Fuel, t	nuclear
Endurance, nm(kts)	unlimited
Armament	1 x 12 Granit SSM VLS (12 3M45), 4 x 6 Kinzhal SAM VLS (192 9M330), 8 x (8 Kortik SAM + 2 x 6 - 30/54) Kortik CIWS (256 9M311), 2 x 10 RBU-12000 Udav-1 ASWRL, 71 aircraft (Su-33 fighters, Yak-44 EW planes, Ka-27, Ka-27PS helicopters)
Electronic equipment	Mars-Passat radar suite, MR-650 Podberiozovik, MR-350 Podkat-M, Volga, 4x 3R-95, Rezistor-K42, 2x Gazon radars, MGK-355TA Polinom-T, MGK-365 Zvezda-M1, MG-717 Amulet-1, Altyn, TK-146 Sozvezdiye-BR, MP-407 Start-2 ECM suites, 8x PK-2M, 4x PK-10 Smely decoy RLs, Tron-Diplomat CCS
Complement	3400

Air group

Year	Fighters	EW planes	Helicopters
design	25 Su-33, 20 MiG-29K	8 Yak-44	15 Ka-27PL, 2 Ka-27PS

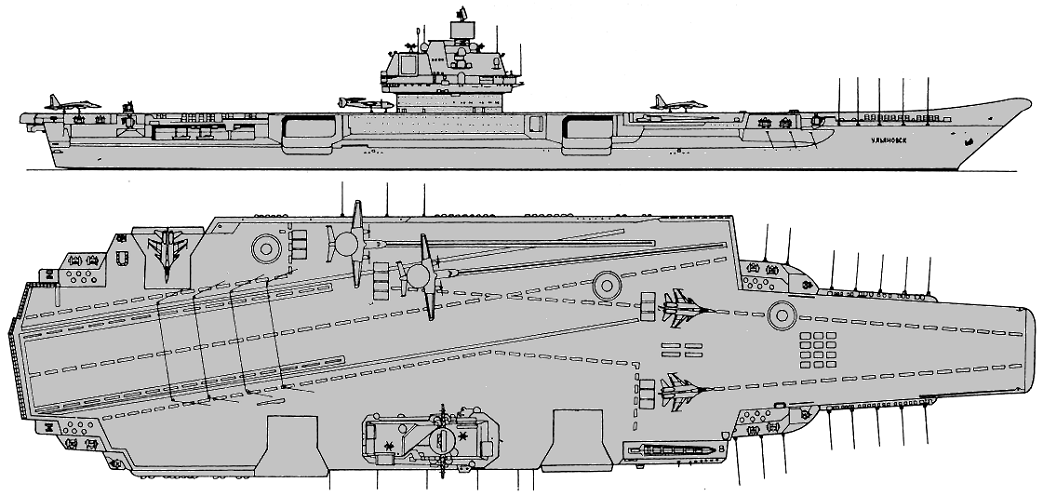

Standard scale images

Aircraft facilities

 (fd - 15,500 m², ha - 5,600 m² / 44,240 m³): Flight deck: 321.2 x 79.5m. Hangar: 175.0 x 32.0 x 7.90 m. There are 3 deck-edge elevators (50t, 20 x 15m). There were 2 steam catapults. Aircraft fuel stowage: 5000 t of jet fuel.

Project history

This was the projected nuclear-powered successor to the Kuznetsov class, equipped with conventional steam catapults. She was laid down at Nikolayev in December 1988 and although her launch was expected during 1991, the economic collapse that year badly slowed work, and the split between Russia and Ukraine made essential parts such as the reactors undeliverable. By February 1992 this ship, which was 20%, was broken up.

Ship protection

Underwater protection consists of 3 longitudinal bulkheads (2nd bulkhead is armoured). Aviation fuel tanks and magazines have box protection.
