MURMANSK cruiser (1923 / 1944)





  Murmansk 1949 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comm Fate
Мурманск [Murmansk] (ex-CL5 Milwaukee)   31 Todd, Tacoma, USA 13.12.1918 24.3.1921 20.6.1923 // 9.3.1944 to USA 3.1949 (Milwaukee)


Technical data


Displacement normal, t

7050

Displacement full, t

10460

Length, m

167.6 wl 169.4 oa

Breadth, m

16.9

Draught, m

4.11

No of shafts

4

Machinery

4 sets Westinghouse geared stem turbines, 12 Yarrow boilers

Power, h. p.

90000

Max speed, kts

34

Fuel, t

oil 1852

Endurance, nm(kts)6660(12)
Armour, mm

belt: 76, deck: 38, CT: 32

Armament

2 x 2 - 152/53 Mk 12.14/18, 6 x 1 - 152/53 Mk 12.14/18, 6 x 1 - 76/50 Mk 10.18/20, 3 x 2 - 40/56 Mk 1.2, 12 x 1 - 20/70 Mk 4, 2 x 3 - 533 TT, 2 catapults, 2 seaplanes (OS2U)

Electronic equipmentSK, 2x SG, 2x Mk 3 radars
Complement

458



Standard scale images

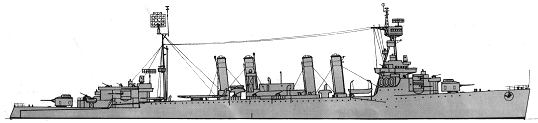

<i>Murmansk</i> 1944
Murmansk 1944


Graphics


  <i>Murmansk</i> 1949 <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
  Murmansk 1949 Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

Former USN light cruiser CL5 Milwaukee of Omaha class. 10.4.1944 she was transferred to the USSR on account of reparations from Italy, 20.4.1944 was commissioned by Northern Fleet as Murmansk. Actual speed did not exceed 28.76kts.

Ship protection

Main 5.8m high belt protected only machinery and was closed by 38mm fore and 76mm aft bulkheads. Main deck consisted of 22mm STS armour and 15mm plating. Guns had only 6mm protection.

Modernizations

odernizations: None

1/1946, Murmansk: 2 x 2 - 152/53 Mk 16, 6 x 1 - 152/53 Mk 13, 6 x 1 - 76/50 Mk 11.20, 3 x 2 - 40/60 Mk 1, 12 x 1 - 20/70 Mk 10, 2 x 3 - 533 TT, 2 catapults, 2 seaplanes (OS2U), SK, 2x SG, 2x Mk 3 radars

Naval service

16.3.1949 Murmansk was returned to the USA at Philadelphia and 10.12.1949 sold for scrap.

Many thanks to Wolfgang Stöhr for additional information on this page.
