Admiral Kornilov 1902

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Адмирал Корнилов [Admiral Kornilov]			A C de la Loire, Saint-Nazaire, France	12.11.1885	9.4.1887	9/1888	TS 10.1907, stricken 5.1911

Technical data

Displacement normal, t	5377
Displacement full, t	5880
Length, m	112.2
Breadth, m	14.8
Draught, m	7.77 max
No of shafts	2
Machinery	2 HTE, 8 cylindrical boilers
Power, h. p.	5977
Max speed, kts	17.6
Fuel, t	coal 1000
Endurance, nm(kts)	5000(10)
Armour, mm	steel; hatch glacis: 114 - 76, deck: 63 - 25, CT: 76
Armament	14 x 1 - 152/32 obr. 1877, 6 x 1 - 47/40 Hotchkiss, 10 x 5 - 37/17 Hotchkiss, 6 - 381 TT (aw, 1 bow, 4 beam, 1 stern)
Complement	479

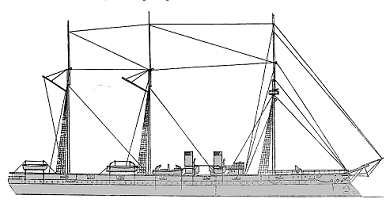

Standard scale images

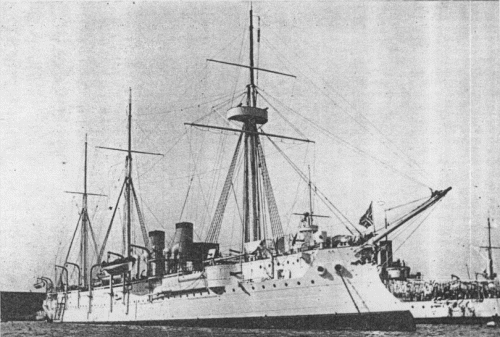

Graphics

Project history

A steel protected cruiser, sheathed and coppered, with a pronounced ram bow and originally rigged as a barque. 152mm guns were on each side of the upper deck with the end guns in slightly projecting sponsons. For most of the waterline there was a cofferdam filled with coconut fibre.

Ship protection

There was a 63-51mm deck with 76mm CT and 114-76mm engine room hatch glacis, but the 152mm guns had shields only.

Modernizations

1905: - 14 x 1 - 152/32, 8 x 5 - 37/17; + 10 x 1 - 152/44 Canet, 4 x 1 - 75/48 Canet, 4 x 1 - 7.6/94

Naval service

Admiral Kornilov was converted to TS 10.10.1907.
