Kuban'

Ships

Name	Launched // Comm.	Builder	Displacement, t	Dimensions, m	Speed, kts	Engine, Power hp	Armament	Fate
Ангара [Angara] (ex-Москва [Moskva])	1898 // 14.8.1903	Clydebank, UK	12050	154.8x17.7	20.1	16839	6-120/43, 6-75/48	sunk 30.10.1904
Лена [Lena] (ex-Херсон [Kherson])	1896 // 15.9.1903	Hawthorn Leslie, Newcastle, UK	10675	145.5x15.6	19.5	13500	6-120/43, 6-75/48	returned 12.1906
Кубань [Kuban'] (ex-Auguste Viktoria]	1.12.1888 // 26.7.1904	Vulkan, Stettin, Germany	12000	164.2x17.1	18.5	13300	2-120/43, 4-75/48, 8-57	stricken 12.1906
Дон [Don] (ex-Fürst Bismarck)	29.11.1890 // 26.7.1904	Vulkan, Stettin, Germany	10000	158.4x15.5	19.5	16410	2-120/43, 5-75/48, 8-57	stricken 10.1906
Урал [Ural] (ex-Kaiserin Maria Teresia)	17.5.1890 // 26.7.1904	Vulkan, Stettin, Germany	10500	161.1x15.8	19	17000	2-120/43, 4-75/48, 8-57	sunk 27.5.1905
Терек [Terek] (ex-Columbia)	27.2.1889 // 25.8.1904	Laird, Birkenhead, UK	10000	139.9x17.1	19	13300	2-120/43, 4-75/48, 8-57	interned by Netherlands 9.6.1905-9/1905, stricken 12.1906
Днепр [Dnepr] (ex-Петербург [Peterburg])	1894 // 10.1904	Hawthorn Leslie, Newcastle, UK	9500	140.8x15.9	19	11500	7-120/43, 8-47, 10-37	returned 8.1905
Рион [Rion] (ex-Смоленск [Smolensk])	1901 // 10.1904	Hawthorn Leslie, Newcastle, UK	14614	143.3x17.7	20	15910	8-120/43, 7-75/48, 4-47	returned 8.1905
Русь [Rus'] (ex-Lahn)	7.6.1887 // 11.1904	Vulkan, Stettin, Germany	9600	141.0x14.9	18.5	9000	4-75/48, 10-57, 9 balloons	stricken 11.1906

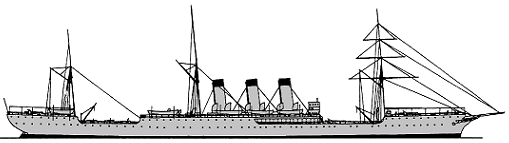

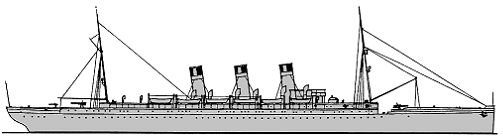

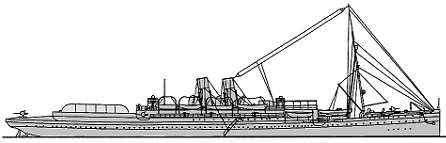

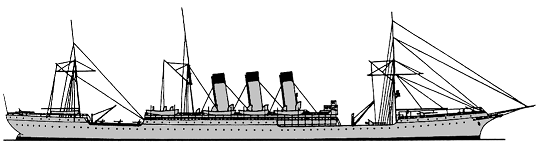

Standard scale images

Graphics

Project history

Merchant vessels mobilized for service as AMC in the time of Russian-Japanese War 1904-1905.

Modernizations

None.

Naval service

Angara was sunk by Japanese field guns at Port Arthur 30.10.1904. Ural was sunk by shells from Japanese ships 27.5.1905 at the Battle of Tsushima.
