STK DD motor torpedo boat (1943)
STK DD
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
СТК ДД [STK DD] |
340 Yd, Zelenodolsk: STK DD |
8.1943: STK DD |
none |
none |
1946: STK DD |
Technical data
| Displacement standard, t | 46 |
|---|---|
| Displacement full, t | 51 |
| Length, m | 25.0 |
| Breadth, m | 4.00 |
| Draught, m | 1.60 |
| No of shafts | 3 |
| Machinery | 3 M-50 diesels + 1 V-2 diesel |
| Power, h. p. | 3000 + 450 |
| Max speed, kts | 34 / 10 |
| Fuel, t | diesel oil 7 |
| Armament | 3 x 1 - 12.7/79, 4 - 450 TT |
| Electronic equipment | Tamir-10N sonar |
| Complement | 11 |

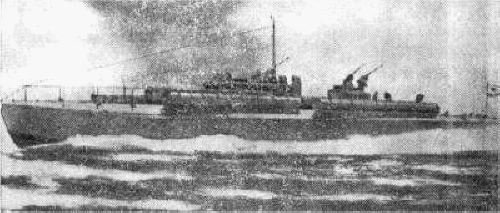

Graphics
STK DD
Project history
"Fast high-endurance motor torpedo boat". Unsuccessful design.
Modernizations
None.
Naval service
No significant events.
