SM-3 motor torpedo boat (1941)
SM-3
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
СМ-3 [SM-3] |
194 Yd (Marti Yd), Leningrad: SM-3 |
7/1941: SM-3 |
none |
none |
1950s: SM-3 |
Technical data
| Displacement standard, t | 21 |
|---|---|
| Displacement full, t | 34 |
| Length, m | 20.8 |
| Breadth, m | 3.86 |
| Draught, m | 1.34 |
| No of shafts | 3 |
| Machinery | 3 GAM-34FN petrol engines |
| Power, h. p. | 3600 |
| Max speed, kts | 30 |
| Fuel, t | petrol 4.7 |
| Endurance, nm(kts) | 380(24) |
| Armament | 2 x 1 - 12.7/79, 2 - 533 TT |
| Complement | 8 |

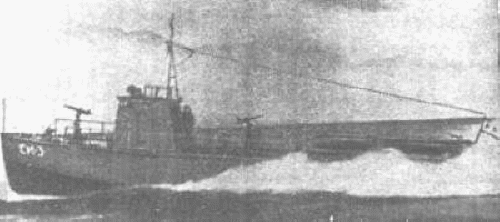

Graphics
SM-3
Project history
Developed as high-endurance MTB together with D-3, but with steel hull (project 103). On arrangement and arms they were similar. Only lead boat was built.
Modernizations
None.
Naval service
No significant events.
