R-5 missile patrol craft (projects 12411T, 12411, 1241RE) (1979-2003)

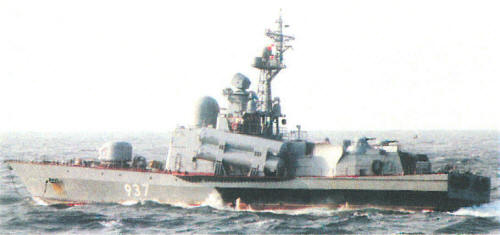

R-18 2002
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate | Modification |
|---|---|---|---|---|---|---|---|---|
| Р-5 [R-5], 6.1980- Калининградский комсомолец [Kaliningradskiy Komsomolets], 2.1992- Р-49 [R-49] | 401 | Almaz, Leningrad | 1977 | 30.1.1979 | stricken 4.2002 | Project 12411T | ||
| Р-255 [R-255], 1981- Кировский комсомолец [Kirovskiy Komsomolets], 2.1992- Р-255 [R-255] | 403 | Almaz, Leningrad | 1979 | 30.12.1980 | stricken 4.2002 | Project 12411T | ||
| Р-256 [R-256], 1987- Полтавский комсомолец [Poltavskiy Komsomolets] | 404 | Almaz, Leningrad | 1982 | to Bulgaria 12.1989 (Мълния [Mulniya]) | Project 12411T | |||
| Р-6 [R-6] | 405 | Almaz, Leningrad | 30.12.1983 | stricken 4.2002 | Project 12411T | |||
| Р-54 [R-54], 9.1987- Краснодарский комсомолец [Krasnodarskiy Komsomolets], 2.1992- Р-54 [R-54] | 200 | Sredne-Nevskiy SYd, Pontonny | 21.4.1981 | 18.12.1982 | 30.12.1983 | to Ukraine 8.1997 (Нiкополь [Nikopol]) | Project 12411T | |
| Куйбышевский комсомолец [Kuybyshevskiy Komsomolets[ (ex-Р-63 [R-63), 2.1992- Р-63 [R-63] | 202 | Sredne-Nevskiy SYd, Pontonny | 19.11.1981 | 23.12.1983 | 10.6.1985 | to Ukraine 8.1997 (Кременчук [Kremenchuk]) | Project 12411T | |
| Р-101 [R-101], 12.2001- Ступинец [Stupinets] | 700 | 203 | Sredne-Nevskiy SYd, Pontonny | 4.8.1982 | 27.6.1984 | 30.9.1985 | in service (2019) | Project 12411T |
| Р-129 [R-129], 2.2013- Кузнецк [Kuznetsk] | 852 | 204 | Sredne-Nevskiy SYd, Pontonny | 3.2.1983 | 19.11.1984 | 28.12.1985 | in service (2019) | Project 12411T |
| Р-257 [R-257] | 833 | 205 | Sredne-Nevskiy SYd, Pontonny | 3.5.1983 | 1.8.1985 | 31.10.1986 | in service (2019) | Project 12411T |
| Р-42 [R-42] | 901 | 60-letiya SSSR SYd, Khabarovsk | 30.3.1983 | stricken 5.2001 | Project 12411T | |||
| Р-45 [R-45] | 902 | 60-letiya SSSR SYd, Khabarovsk | 26.12.1983 | stricken 8.1995 | Project 12411T | |||
| Р-69 [R-69] | 903 | 60-letiya SSSR SYd, Khabarovsk | 1980 | 30.9.1984 | stricken 8.1995 | Project 12411T | ||
| Р-79 [R-79] | 995 | 904 | 60-letiya SSSR SYd, Khabarovsk | 1980 | 19.12.1984 | in service (2019) | Project 12411T | |
| Р-71 [R-71], 8.2014- Шуя [Shuya] | 962 | 201 | Sredne-Nevskiy SYd, Pontonny | 12.8.1981 | 14.9.1983 | 10.6.1985 | in service (2019) | Project 12417 |
| Р-46 [R-46] | 402 | Almaz, Leningrad | 21.3.1976 | 20.3.1980 | 29.12.1981 | stricken 12.1994 | Project 12411 | |
| Тамбовский комсомолец [Tambovskiy Komsomolets] (ex-Р-47 [R-47]), 2.1992- Р-47 [R-47] | 206 | Sredne-Nevskiy SYd, Pontonny | 22.6.1983 | 21.8.1986 | 13.2.1987 | stricken 2016 | Project 12411 | |
| Р-60 [R-60] | 955 | 207 | Sredne-Nevskiy SYd, Pontonny | 10.12.1985 | 30.12.1986 | 12.12.1987 | in service (2019) | Project 12411 |
| Р-160 [R-160], 1990- Полтавский комсомолец [Poltavskiy Komsomolets], 2.1992- Р-160 [R-160], 1997- МАК-160 [MAK-160] | 208 | Sredne-Nevskiy SYd, Pontonny | 27.2.1986 | 29.9.1987 | 8.8.1988 | stricken 2018 | Project 12411 | |
| Р-187 [R-187], 10.2011- Заречный [Zarechnyy] | 855 | 209 | Sredne-Nevskiy SYd, Pontonny | 18.7.1986 | 16.4.1988 | 4.3.1989 | in service (2019) | Project 12411 |
| Р-239 [R-239], 1.2018- Набережные Челны [Naberezhnyye Chelny] | 953 | 210 | Sredne-Nevskiy SYd, Pontonny | 5.10.1987 | 30.12.1988 | 21.9.1989 | in service (2019) | Project 12411 |
| Р-334 [R-334], 10.1998- Ивановец [Ivanovets] | 954 | 211 | Sredne-Nevskiy SYd, Pontonny | 4.1.1988 | 28.7.1989 | 30.12.1989 | in service (2019) | Project 12411 |
| Р-109 [R-109] | 952 | 212 | Sredne-Nevskiy SYd, Pontonny | 24.7.1989 | 13.4.1990 | 20.10.1990 | in service (2019) | Project 12411 |
| Р-291 [R-291], 7.2005- Димитровград [Dimitrovgrad] | 825 | 213 | Sredne-Nevskiy SYd, Pontonny | 25.7.1989 | 19.10.1990 | 30.5.1991 | in service (2019) | Project 12411 |
| Р-293 [R-293], 10.2005- Моршанск [Morshansk] | 824 | 214 | Sredne-Nevskiy SYd, Pontonny | 30.4.1991 | 23.8.1991 | 23.3.1992 | in service (2019) | Project 12411 |
| Р-2 [R-2], 2.2000- Чувашия [Chuvashiya] | 820 | 215 | Sredne-Nevskiy SYd, Pontonny | 1991 | 1994 | 26.2.2000 | in service (2019) | Project 12411 |
| Р-5 [R-5] | 216 | Sredne-Nevskiy SYd, Pontonny | 1991 | --- | --- | suspended 1991 | Project 12411 | |
| Р-66 [R-66] | 905 | 60-letiya SSSR SYd, Khabarovsk | 31.5.1985 | stricken 8.1995 | Project 12411 | |||
| Р-85 [R-85] | 906 | 60-letiya SSSR SYd, Khabarovsk | 30.9.1985 | stricken 3.1998 | Project 12411 | |||
| Р-103 [R-103] | 907 | 60-letiya SSSR SYd, Khabarovsk | 30.11.1985 | stricken 3.1998 | Project 12411 | |||
| Р-113 [R-113] | 908 | 60-letiya SSSR SYd, Khabarovsk | 30.12.1985 | stricken 7.1997 | Project 12411 | |||
| Р-158 [R-158] | 909 | 60-letiya SSSR SYd, Khabarovsk | 30.10.1986 | stricken 7.1996 | Project 12411 | |||
| Р-76 [R-76] | 910 | 60-letiya SSSR SYd, Khabarovsk | 30.12.1986 | stricken 7.1996 | Project 12411 | |||
| Р-83 [R-83] | 911 | 60-letiya SSSR SYd, Khabarovsk | 30.12.1986 | stricken 5.2001 | Project 12411 | |||
| Р-229 [R-229] | 912 | 60-letiya SSSR SYd, Khabarovsk | 30.9.1987 | stricken 4.2002 | Project 12411 | |||
| Р-230 [R-230] | 913 | 60-letiya SSSR SYd, Khabarovsk | 30.12.1987 | stricken 7.1997 | Project 12411 | |||
| Р-240 [R-240] | 914 | 60-letiya SSSR SYd, Khabarovsk | 30.10.1988 | stricken 4.2002 | Project 12411 | |||
| Р-261 [R-261] | 991 | 915 | 60-letiya SSSR SYd, Khabarovsk | 31.12.1988 | in service (2019) | Project 12411 | ||
| Р-271 [R-271] | 916 | 60-letiya SSSR SYd, Khabarovsk | 5.9.1989 | stricken 6.2005 | Project 12411 | |||
| Р-442 [R-442] | 917 | 60-letiya SSSR SYd, Khabarovsk | 16.12.1989 | stricken 6.2005 | Project 12411 | |||
| Р-297 [R-297] | 951 | 918 | 60-letiya SSSR SYd, Khabarovsk | 8.9.1990 | in service (2019) | Project 12411 | ||
| Р-298 [R-298] | 971 | 919 | 60-letiya SSSR SYd, Khabarovsk | 31.12.1990 | in service (2019) | Project 12411 | ||
| Р-11 [R-11] | 940 | 920 | 60-letiya SSSR SYd, Khabarovsk | 1.9.1991 | in service (2019) | Project 12411 | ||
| Р-14 [R-14] | 924 | 921 | Khabarovsk SYd | 1988 | 28.12.1991 | in service (2019) | Project 12411 | |
| Р-18 [R-18] | 937 | 922 | Khabarovsk SYd | 24.8.1992 | in service (2019) | Project 12411 | ||
| Р-19 [R-19] | 978 | 923 | Khabarovsk SYd | 7.12.1992 | in service (2019) | Project 12411 | ||
| Р-20 [R-20] | 921 | 924 | Khabarovsk SYd | 1989 | 10.1991 | 19.11.1993 | in service (2019) | Project 12411 |
| Р-24 [R-24] | 946 | 925 | Khabarovsk SYd | 1989 | 12.1991 | 12.1994 | in service (2019) | Project 12411 |
| Р-29 [R-29] | 916 | 926 | Khabarovsk SYd | 1992 | 29.1.2001 | 15.8.2003 | in service (2019) | Project 12411 |
| Project 1241RE | Project 12411 | |||||||
| Р-26 [R-26] | 01710 | Vympel, Rybinsk | 3.3.1981 | stricken 4.2002 | Project 12411 | |||
| Р-624 [R-624] | 01711 | Vympel, Rybinsk | 1983 | to Poland 12.1983 (Gornik) | Project 12411 | |||
| Р-62 [R-62] | 01712 | Vympel, Rybinsk | 1983 | to Poland 3.1984 (Hutnik) | Project 12411 | |||
| Р-615 [R-615] | 01715 | Vympel, Rybinsk | 1985 | to East Germany 1985 (Fritz Globick) | Project 12411 | |||
| Р-630 [R-630] | 01717 | Vympel, Rybinsk | 1986 | to East Germany 1986 (Hans Beimler) | Project 12411 | |||
| Р-542 [R-542] | 01720 | Vympel, Rybinsk | 1987 | to Poland 2.1988 (Metalowiec) | Project 12411 | |||
| Р-833 [R-833] | 01722 | Vympel, Rybinsk | 1988 | to Poland 2.1989 (Rolnik) | Project 12411 | |||
| Р-104 [R-104] | 01728 | Vympel, Rybinsk | 1991 | to Vietnam 10.1994 (HQ372) | Project 12411 | |||
| Р-69 [R-69] | 01729 | Vympel, Rybinsk | 1991 | to Vietnam 10.1994 (HQ371) | Project 12411 | |||
| Р-600 [R-600] | i | Yaroslavl SYd | 1990 | to Iraq 1990 (...) | Project 12411 | |||
| Р-601 [R-601] | ii | Yaroslavl SYd | 10.5.1990 | to Romania 12.1991 (Pescăruşul) | Project 12411 | |||
| Р-602 [R-602] | iii | Yaroslavl SYd | 1991 | to Romania 2.1992 (Lăstunul) | Project 12411 |
Technical data
| Displacement standard, t | pr. 12411T: 392 pr. 12417: 435 pr. 12411: 436 pr. 1241RE: 385 |
|---|---|
| Displacement full, t | pr. 12411T: 469 pr. 12417: 495 pr. 12411: 493 pr. 1241RE: 455 |
| Length, m | 56.1 |
| Breadth, m | 10.2 |
| Draught, m | pr. 12411T, 12417: 2.25 pr. 12411: 2.50 pr. 1241RE: 2.20 |
| No of shafts | 2 |
| Machinery | pr. 12411T, 12417: 2 M-15 gas turbine units (each consist of M-75 cruising gas turbine and M-70 boost gas turbine) pr. 12411: 2 M-510 diesels + 2 M-70 gas turbines pr. 1241RE: 2 M-15E gas turbine units (each consist of M-75 cruising gas turbine and M-70 boost gas turbine) |
| Power, h. p. | pr. 12411T, 12417, 1241RE: 10000 + 24000 = 34000 pr. 12411: 8000 + 24000 = 32000 |
| Max speed, kts | pr. 12411T, 12417: 42 pr. 12411: 41 pr. 1241RE: 43 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | pr. 12411T, 12417, 12411: 1600(14) pr. 1241RE: 2200(14) |
| Armament | pr. 12411T: 2 x 2 P-15M Termit SSM (4 4K51), 1 x 4 Strela-3M or Igla-1 SAM (16 9M36M or 9M313), 1 x 1 - 76/59 AK-176M, 2 x 6 - 30/54 AK-630M pr. 12417: 2 x 2 P-15M Termit SSM (4 4K51), 1 x (8 Kortik SAM + 2 x 6 - 30/54) Kortik CIWS (16 9M311), 1 x 1 - 76/59 AK-176M pr. 12411 402, 206-213, 905-919: 2 x 2 P-100 Moskit SSM (4 3M80), 1 x 4 Strela-3M or Igla-1 SAM (16 9M36M or 9M313), 1 x 1 - 76/59 AK-176, 2 x 6 - 30/54 AK-630M pr. 12411 others: 2 x 2 P-105 Moskit-M SSM (4 3M82), 1 x 4 Strela-3M or Igla-1 SAM (16 9M36M or 9M313), 1 x 1 - 76/59 AK-176, 2 x 6 - 30/54 AK-630M pr. 1241RE: 2 x 2 P-20M Termit SSM (4 P-20M), 1 x 4 Strela-2M or Strela-3 or Strela-3M SAM (16 9M32M or 9M36 or 9M36M), 1 x 1 - 76/59 AK-176M, 2 x 6 - 30/54 AK-630M |
| Electronic equipment | pr. 12411T, 401: 4Ts53 Garpun, Rangout, MR-123 Vympel-A, MR-405, Don radars, Vympel-R2 ECM suite, 2x PK-16 decoy RL pr. 12411T, 403: Monolit-T radar suite, MR-123 Vympel-A, Don radars, Vympel-R2 ECM suite, 2x PK-16 decoy RL pr. 12411T, others: Monolit-T radar suite, MR-123 Vympel-A, MR-405, Don radars, Vympel-R2 ECM suite, 2x PK-16 decoy RL pr. 12417: 34K1 Monolit radar suite, Pozitiv, Don radars, 2x PK-16 decoy RL pr. 12411 402, 206-213, 905-919: 34K1 Monolit radar suite, MR-123 Vympel-A, Don radars, Vympel-R2 ECM suite, 2x PK-16 decoy RL pr. 12411 others: 34K1 Monolit radar suite, MR-123 Vympel-A, Don radars, Vympel-R2 ECM suite, Spektr-F radar detector, 4x PK-10 Smely decoy RL pr. 1241RE: Garpun-E, MR-123 Vympel-A, Kivach-2 or Pechora-1 or Don radars |
| Complement | pr. 12411T, 12417: 41 pr. 12411: 40 pr. 1241RE: 37 |
Standard scale images
Kaliningradskiy Komsomolets 1990
R-46 1990
R-26 1981
Graphics
R-18 2002
R-71 1999
Morshansk 2008
Project history
The Almaz KB, which had developed projects 183R and 205, began work on a new missile boat in 1970. Experience with the earlier boats showed a need for a more seaworthy hull, better gun and anti-aircraft armament, and longer-ranged and more sophisticated anti-ship missile. Apparently early studies envisaged a modified pr. 205, but in 1973 a new design, to use Moskit missile, was authorised. The new missile required a more advanced target designation system (ie, the sort of talk-back system already employed by pr. 1234). Trials of the prototype soon demonstrated that the new Iong-range missile could not be accommodated. The later 3M80 may have been developed specifically for this class.
In the interim, boats armed with Termit missiles were built both for the Soviet Navy and for export. The export version was known as project 1241RE). Some project 1241RE boats were commissioned by Soviet Navy before transfer. Also one boat (R-26) served under Soviet flag was used for training of foreign crews.
Building of the next version of this boat, project 12418, armed with 16 Uran SSM, was started in XXI century for export.
Modernizations
1997, MAK-160: - 2 x 2 Moskit SSM, 23K1 Monolit radar suite; + 4 x 17 - 140 BM-14-17 RL, 4x PK-10 Smely decoy RL
2005, R-71: - (8 Kortik SAM + 2 x 6 - 30/54) Kortik CIWS
2005, R-60: - 2 x 6 - 30/54; + 1 x 12 - 30/54 Palash CIWS
2014, R-71: + 2 x 6 - 30/54 AK-630M
R-24, 2010s: - MR-123 Vympel-A radar; + MR-123-02/3 Bagira radar
Naval service
No significant events.
