ORLAN border guard boats (pr. 03050) (2018-)

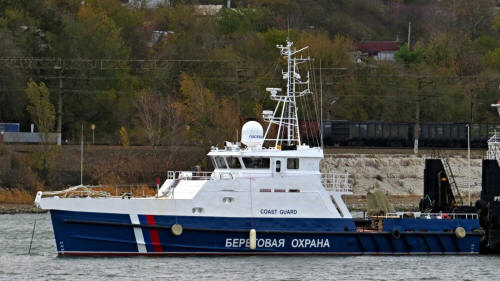

Yard No 01411 2018
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Орлан [Orlan] | 734 | 01408 | Vympel, Rybinsk | 24.6.2016 | 3.10.2017 | 4.2018 | in service (2019) |
| Коршун [Korshun] | 01410 | Vympel, Rybinsk | 11.10.2018 | 2019 | building (2019) | ||
| Кречет [Krechet] | 01411 | Vympel, Rybinsk | 2018 | 17.10.2018 | 2019 | building (2019) | |
| ПСКА-... [PSKA-...] | 01412 | Vympel, Rybinsk | 2019 | building (2019) | |||
| ПСКА-... [PSKA-...] | 01413 | Vympel, Rybinsk | 2019 | building (2019) | |||
| ПСКА-... [PSKA-...] | Vympel, Rybinsk | 2020 | ordered (2019) |
Technical data
| Displacement standard, t | 95 |
|---|---|
| Displacement full, t | 112 |
| Length, m | 29.1 |
| Breadth, m | 6.48 |
| Draught, m | 1.90 |
| No of shafts | 3 |
| Machinery | 3 YaMZ-8401.10-09ppDMT300HL diesels |
| Power, h. p. | 2400 |
| Max speed, kts | 18 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1000 |
| Armament | 1 x 1 - 7.6/90 |
| Electronic equipment | radar |
| Complement | 5 |
Graphics
Yard No 01411 2018
Project history
Redesigned project 1496M1.
Modernizations
None.
Naval service
No significant events.
