P-931 patrol boats (project 12150A) (2013)
2013
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
П-931 [P-931] П-936 [P-936] |
Vympel, Rybinsk: P-931, 936 |
2013: P-931, 936 |
none |
none |
in service (2019): P-931, 936 |
Technical data
| Displacement standard, t | 24 |
|---|---|
| Displacement full, t | 27 |
| Length, m | 21.5 |
| Breadth, m | 4.40 |
| Draught, m | 1.16 |
| No of shafts | 2 waterjets |
| Machinery | 2 MTU 10V2000M93 diesels |
| Power, h. p. | 3046 |
| Max speed, kts | 52 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 430(35) |
| Armament | 1 x 1 - 12.7/79 |
| Electronic equipment | Furuno radar |
| Complement | 6 |
Standard scale images

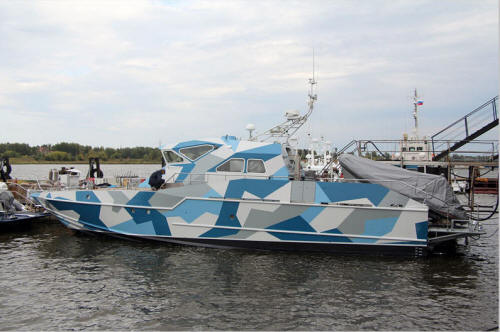

P-931 2015
Graphics
2013
Project history
Fast patrol craft, many more boats were built for Border Guard.
Modernizations
None.
Naval service
No significant events.
