P-834 patrol boats (project IC16MII) (2011)





P-834 2014

Ships


Names Builders Completed Losses Transfers Discarding

П-834 [P-834]

П-835 [P-835]

Doxtavaerft, Doxta, Sweden: P-834, 835

2011: P-834, 835

none

none

in service (2019): P-834, 835



Technical data


Displacement standard, t
Displacement full, t

20

Length, m

15.9

Breadth, m

3.80

Draught, m

0.90

No of shafts

2 waterjets

Machinery

2 MAN 2842LE410 diesels

Power, h. p.

2200

Max speed, kts

50

Fuel, t

diesel oil

Endurance, nm(kts)

400

Armament

small arms

Electronic equipmentFuruno radar
Complement

4 + 8 passengers



Standard scale images

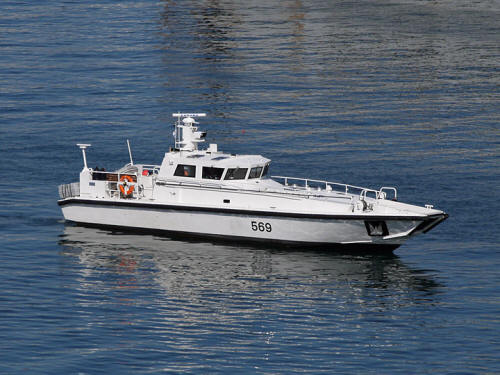

<i>P</i><i>-834 </i> 2015
P-834 2015


Graphics


<i>P-834 </i>2014
P-834 2014


Project history

Small special purpose craft.

Modernizations

None.

Naval service

No significant events.
