MO-269 small submarine chasers (project OD-200bis) (1946 - 1948)
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
MO-269 MO-270 - 289, 12.1956- СК-270 - 289 [SK-270 - 289] MO-290 MO-291 MO-292 - 300, 12.1956- СК-292 - 300 [SK-292 - 300] MO-310, 12.1956- СК-310 [SK-310] MO-471 - 474 MO-641 - 658, 12.1956- СК-641 - 658 [SK-641 - 658] MO-659 MO-660, 12.1956- СК-660 [SK-660] MO-661, 12.1956- СК-298 [SK-298] MO-662, 12.1956- СК-299 [SK-299] MO-663, 12.1956- СК-663 [SK-663] MO-691, 12.1956- СК-691 [SK-691] MO-692, 12.1956- СК-692 [SK-692] MO-694, 12.1956- СК-694 [SK-694] |
5 Yd, Leningrad or 640 Yd, Sosnovka: MO-269-300, 310, 471-474, 641-663, 691, 692, 694 |
1946 - 1948: MO-269-300, 310, 471-474, 641-663, 691, 692, 694 |
none |
Bulgaria, 1947: MO-471 - 474 |
1949: MO-269, 290, 291, 659 late 1950s: SK-270 - 289, 292 - 300, 310, 641 - 658, 660, 298, 299, 663, 691, 692, 694 |
Technical data
| Displacement standard, t | 42 |
|---|---|
| Displacement full, t | 48 |
| Length, m | 23.4 |
| Breadth, m | 4.00 |
| Draught, m | 1.75 |
| No of shafts | 2 |
| Machinery | 2 M-50 diesels |
| Power, h. p. | 2000 |
| Max speed, kts | 29 |
| Fuel, t | diesel oil 6 |
| Endurance, nm(kts) | 1500(8) |
| Armament | 1 x 1 - 37/73 70K, 2 x 1 - 12.7/79, 2 DCR (12) |
| Electronic equipment | Tamir-1 sonar |
| Complement | 16 |
Standard scale images

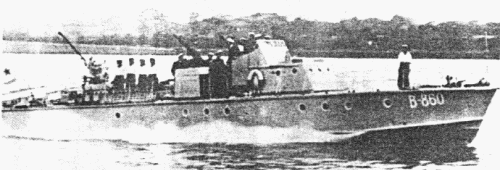

MO-269 1946
Graphics
Project history
Enhanced variant of type OD-200 with diesels.
Modernizations
None.
Naval service
No significant events.
