PERVENETS motor torpedo boat (project ANT-3) (1927)
Pervenets
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
Первенец [Pervenets] |
TsAGI, Moscow: Pervenets |
7/1927: Pervenets |
none |
none |
8/1941: Pervenets |
Technical data
| Displacement standard, t |
|
|---|---|
| Displacement full, t | 8.9 |
| Length, m | 17.3 |
| Breadth, m | 3.30 |
| Draught, m | 0.90 |
| No of shafts | 2 |
| Machinery | 2 Wright Cyclone petrol engines |
| Power, h. p. | 1200 |
| Max speed, kts | 54 |
| Fuel, t | petrol |
| Endurance, nm(kts) | 340(24) |
| Armament | 2 x 1 - 7.6/94, 1 - 450 TT (stern), 2 mines |
| Complement | 3 |
Standard scale images

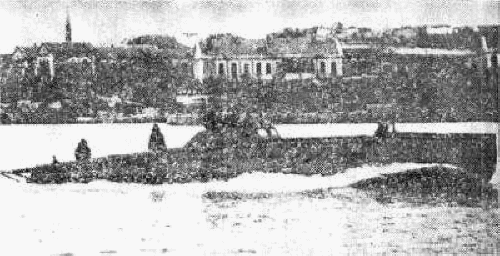

Pervenets
Graphics
Pervenets
Project history
First Soviet MTB, design of TsAGI under guidance of A. N. Tupolev. Dural stepped hull, by form reminding float of a seaplane; torpedoes were launched from chutes astern. Experimental boat.
Modernizations
None.
Naval service
No significant events.
