No21 motor torpedo boats (1942 - 1945 / 1943 - 1945)





No22

Ships


Names Builders Commissioned Losses Transfers Discarding

№21 [No21] (ex-PT89)

№22 [No22] (ex-PT86), 2.1944- TK-214

№202 - 213 [No202 - 213] (ex-PT265 - 276), 4.1944- TK-202 - 213

TK-215 - 218 (ex-PT289 - 292)

TK-219 (ex-PT294)

TK-222 (ex-PT293)

TK-851 - 882 (ex-PT625 - 656)

Higgins, New Orleans, USA: No21, 22, 202-213, TK-215-219, 222, 851-882

7 - 12.1942 // 2.1943 - No21, 22

1 - 12.1943 // 11.1943 - No202 - 213

1 - 12.1943 // 12.1943 - TK-215 - 219, TK-222

12.1944 // 5.1945 - TK-851, 852

1 - 10.1945 // 5 - 8.1945 - TK-853 - 882

No21 (12.5.1943), TK-214 (10.3.1945), TK-203 (19.8.1944), TK-209 (9.5.1944), TK-212 (10.4.1944), TK-217 (8.5.1944)

No

1954: TK-855, TK-859, TK-877

1956: TK-202, TK-204 - 208, TK-210, TK-211, TK-213, TK-215, TK-216, TK-218, TK-219, TK-222, TK-851 - 854, TK-856 - 858, TK-860 - 876, TK-878 - 882



Technical data


Displacement standard, t

35

Displacement full, t

48

Length, m

23.9 - 24.0

Breadth, m

6.12

Draught, m

1.60

No of shafts

3

Machinery

3 petrol engines

Power, h. p.

4050 - 4500

Max speed, kts

41

Fuel, t

petrol 10800 l

Endurance, nm(kts)

500 (20)

Armament

No21, 22, 202 - 213, TK-215 - 219, TK-222: 1 x 1 - 20/70 Mk 4, 2 x 2 - 12.7/90, 4 - 533 TT

TK-851 - 882: 1 x 1 - 40/56 Mk 1.2, 2 x 1 - 20/70 Mk 4, 4 - 533 TT

Electronic equipmentSO or SCR-517A radar
Complement

17



Graphics

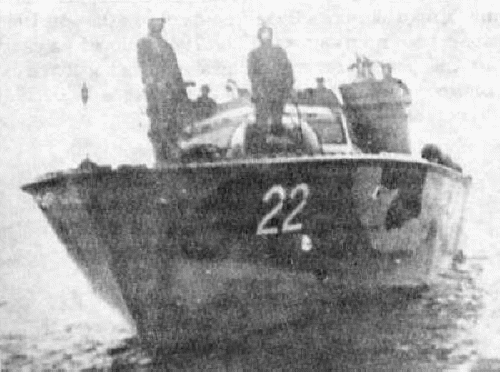

<i>No22</i>
No22


Project history

Higgins 78ft MTBs, delivered on lend-lease.

Modernizations

1944, most survived: + 1 x 1 - 20/70 Mk 4

Naval service

No significant events.
