No11 motor launches (project A) (1942 - 1943)
No22
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
№11 [No11] (ex-ДЗ-221 [DZ-221]), 6.1944- СК-11 [SK-11] №12 [No12] (ex-ДЗ-215 [DZ-215]), 6.1944- СК-12 [SK-12] №13 [No13] (ex-ДЗ-222 [DZ-222]), 6.1944- СК-13 [SK-13] №14 [No14], 6.1944- СК-14 [SK-14] №15 - 17 [No15 - 17] (ex-ДЗ-216 - 218 [DZ-216 - 218]), 6.1944- СК-15 - 17 [SK-15 - 17] №21 [No21] (ex-ДЗ-211 [DZ-211]), 3.1944- СК-21 [SK-21] №22 [No22] (ex-ДЗ-212 [DZ-212]), 3.1944- СК-22 [SK-22] №23 [No23] (ex-ДЗ-219 [DZ-219]), 3.1944- СК-23 [SK-23] №24 [No24] (ex-ДЗ-213 [DZ-213]), 3.1944- СК-24 [SK-24] №25 [No25] (ex-ДЗ-220 [DZ-220]), 3.1944- СК-25 [SK-25] №26 [No26] (ex-ДЗ-214 [DZ-214]), 3.1944- СК-26 [SK-26] №661 - 667 [No661 - 667], 7.1944- СК-661 - 667 [SK-661 - 667] |
small yards |
1942: No11 - 17, 21 - 26 1943: No661 - 667 |
none |
none |
early 1950s: all |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 8 |
| Length, m | 15.6 |
| Breadth, m | 3.00 |
| Draught, m | 0.60 |
| No of shafts | 1 |
| Machinery | 1 petrol engine |
| Power, h. p. | 63 |
| Max speed, kts | 8 |
| Fuel, t | petrol |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 12.7/79, 1 x 1 - 7.6/94 |
| Complement | 6 |
Standard scale images
No11 1943
Graphics

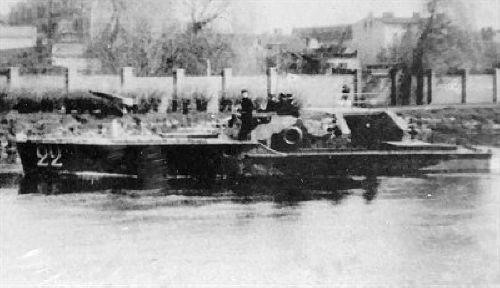

No22
Project history
Runabouts and office boats. Steel-hulled, equipped by automobile motor. They were used as patrol, minesweeping and smoke curtain launches mainly on rivers and lakes.
Modernizations
None.
Naval service
No significant events.
