RUBIN border guard ships (pr. 22460) (2009-)

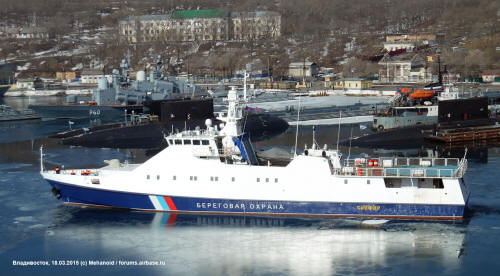

Sapfir 2015
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| Рубин [Rubin] | 050 | 501 | Almaz, St. Petersburg | 3.9.2007 | 26.6.2009 | 13.11.2009 | in service (2019) |
| Бриллиант [Brilliant] | 550 | 502 | Almaz, St. Petersburg | 12.5.2010 | 25.11.2011 | 26.6.2012 | in service (2019) |
| Жемчуг [Zhemchug] | 352 | 503 | Almaz, St. Petersburg | 22.12.2010 | 21.4.2012 | 21.9.2012 | in service (2019) |
| Изумруд [Izumrud] | 354 | 504 | Almaz, St. Petersburg | 21.9.2012 | 14.8.2013 | 27.7.2014 | in service (2019) |
| Аметист [Ametist] | 355 | 505 | Almaz, St. Petersburg | 2012 | 24.3.2014 | 3.10.2014 | in service (2019) |
| Проворный [Provornyy] | 406 | 506 | Almaz, St. Petersburg | 27.6.2014 | 6.5.2016 | 11.11.2016 | in service (2019) |
| Преданный [Predannyy] | 551 | 507 | Almaz, St. Petersburg | late 2014 | 7.4.2017 | 15.9.2017 | in service (2019) |
| Надёжный [Nadyozhnyy] | 508 | 508 | Almaz, St. Petersburg | 27.6.2014 | 26.5.2016 | 10.12.2016 | in service (2019) |
| Бдительный [Bditelnyy] | 552 | 509 | Almaz, St. Petersburg | 2016 | 21.4.2017 | 13.10.2017 | in service (2019) |
| Безупречный [Bezuprechnyy] | 510 | 510 | Almaz, St. Petersburg | 24.5.2017 | 18.4.2018 | 10.10.2018 | in service (2019) |
| 511 | Almaz, St. Petersburg | 4.9.2018 | 2019 | 2019 | building (2019) | ||
| Сапфир [Sapfir] | 144 | 300 | Vostochnaya verf', Vladivostok | 5.2012 | 6.8.2014 | 17.4.2015 | in service (2019) |
| Коралл [Korall] | 095 | 301 | Vostochnaya verf', Vladivostok | 11.2013 | 6.7.2015 | 17.12.2015 | in service (2019) |
| Дозорный [Dozornyy] | 129 | 302 | Vostochnaya verf', Vladivostok | 12.2014 | 22.8.2017 | 25.5.2018 | in service (2019) |
Technical data
| Displacement standard, t | 685 |
|---|---|
| Displacement full, t | 750 |
| Length, m | 62.4 |
| Breadth, m | 10.9 |
| Draught, m | 2.77 mean 3.27 max |
| No of shafts | 2 |
| Machinery | earlier: 4 MTU 16V4000M73L diesels later: 4 CHD622V20 diesels |
| Power, h. p. | earlier: 15400 later: 15700 |
| Max speed, kts | 27 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 3500(8) |
| Armament | 1 x 6 - 30/54 AK-630M, 2 x 1 - 12.7/79, 1 UAV (Gorizont Air S-100) |
| Electronic equipment | Nayada, Baltika-M radars, SP-520M-2 e/o system, Sektor ESM suite |
| Complement | 20 |
Standard scale images
Brilliant 2015
Graphics
Sapfir 2015
Project history
Seagoing multipurpose patrol ships, equipped with helicopter-type UAV and stern ramp for RIBs. Ships can also carry one light helicopter (Ka-226 or Ansat) on helicopter deck, 2 quadruple canisters with Uran SSMs and 57mm A-220M gun mount instead of AK-630. It is planned to build about 30 ships of this class.
Modernizations
None.
Naval service
No significant events.
