PSKR-52 border guard boats (project 1249) (1979-1984)
PSKR-58 2003
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| ПСКР-52 [PSKR-52] | 117 | 401 | Khabarovsk SYd | 1979 | in service (2019) | ||
| ПСКР-52 [PSKR-53], 1.2003- 80 лет КДВРУ [80 Let KDVRU] | 065 | 402 | Khabarovsk SYd | 1980 | in service (2019) | ||
| ПСКР-54 [PSKR-54] | 146 | 403 | Khabarovsk SYd | 1981 | in service (2019) | ||
| ПСКР-55 [PSKR-55] | 013 | 404 | Khabarovsk SYd | 1981 | in service (2019) | ||
| ПСКР-56 [PSKR-56], 8.1996- Казак уссурийский [Kazak Ussuriyskiy] | 093 | 405 | 60-letiya SSSR Yd, Khabarovsk | 1982 | in service (2019) | ||
| ПСКР-57 [PSKR-57] | 058 | 406 | 60-letiya SSSR Yd, Khabarovsk | 1983 | in service (2019) | ||
| ПСКР-58 [PSKR-58] | 123 | 407 | 60-letiya SSSR Yd, Khabarovsk | 1983 | in service (2019) | ||
| ПСКР-59 [PSKR-59] | 189 | 408 | 60-letiya SSSR Yd, Khabarovsk | 1984 | in service (2019) |
Technical data
| Displacement standard, t | 216 |
|---|---|
| Displacement full, t | 225 |
| Length, m | 42.9 |
| Breadth, m | 6.10 |
| Draught, m | 1.30 |
| No of shafts | 3 |
| Machinery | 3 M-401B diesels |
| Power, h. p. | 3300 |
| Max speed, kts | 17.4 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 500(10) |
| Armament | 1 x 1 Strela-2M SAM (8 9M32M), 1 x 6 - 30/54 AK-630M, 1 x 1 - 30 BP-30 Plamia grenade launcher |
| Electronic equipment | Mius radar |
| Complement | 28 + 12 HQ personnel |
Standard scale images

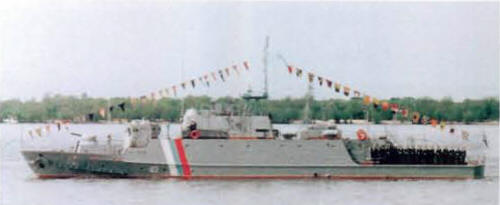

PSKR-55 2000
Graphics
PSKR-58 2003
Project history
Command ships for Amur flotilla.
Modernizations
2010s, some received new radars: Liman, MR-415 Poisk
Naval service
No significant events.
