PSKR-400 border guard boats (pr. 14310, 14310M) (2001-2007)
Noyabrsk
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate | Modification |
|---|---|---|---|---|---|---|---|---|
| ПСКР-400 [PSKR-400] (ex-ПК-500 [PK-500]) | 137 | 02500 | Vympel, Rybinsk | 28.7.2001 | in service (2019) | Project 14310 | ||
| ПСКР-401 [PSKR-401], 5.2008- Ноябрьск [Noyabrsk] | 558 | 02501 | Vympel, Rybinsk | 27.5.2003 | 5.11.2003 | in service (2019) | Project 14310M | |
| ПСКР-402 [PSKR-402] | 02502 | Vympel, Rybinsk | 26.7.2007 | 10.2007 | in service (2019) | Project 14310M |
Technical data
| Displacement standard, t | 110 |
|---|---|
| Displacement full, t | 126 |
| Length, m | 35.5 |
| Breadth, m | 6.60 |
| Draught, m | 1.74 hull 2.65 max |
| No of shafts | 2 |
| Machinery | 2 M-520BE diesels |
| Power, h. p. | 10800 |
| Max speed, kts | 50 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1500(8) |
| Armament | pr. 14310: 2 x 3 Shturm ATM (6 9M120-1), 1 x 8 Igla-1M SAM (8 Igla-1M), 1 x 6 - 30/54 AK-306, 2 x 1 - 14.5/89 pr. 14310M: 1 x 8 Igla-1M SAM (8 Igla-1M), 1 x 6 - 30/54 AK-306, 2 x 1 - 14.5/89 |
| Electronic equipment | radar |
| Complement | 12 |
Standard scale images

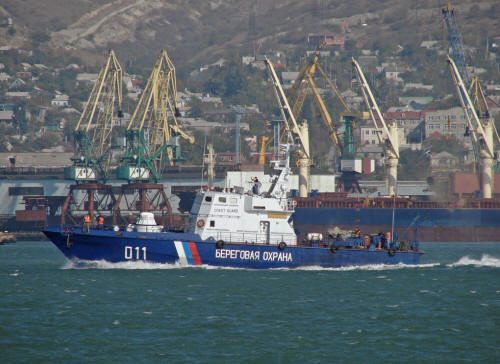

Noyabrsk 2015
Graphics
Noyabrsk
Project history
Fast patrol craft, successor for the Project 205P.
Modernizations
None.
Naval service
No significant events.
