PSKR-200 border guard boats (project 12130) (1998-2010)
Admiral Kazakevich 2003
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
ПСКР-200 [PSKR-200], 4.2003- Адмирал Казакевич [Admiral Kazakevich] ПСКР-201 [PSKR-201] ПСКР-202 [PSKR-202] ПСКР-203 [PSKR-203] |
Khabarovsk SYd: PSKR-200-203 |
1998: PSKR-200 2001: PSKR-201 2007: PSKR-202 2010: PSKR-203 |
None |
None |
in service (2019): Admiral Kazakevich, PSKR-201-203 |
Technical data
| Displacement standard, t | 91 |
|---|---|
| Displacement full, t | 98 |
| Length, m | 33.4 |
| Breadth, m | 4.20 |
| Draught, m | 0.81 |
| No of shafts | 2 |
| Machinery | 2 M-401B diesels |
| Power, h. p. | 2200 |
| Max speed, kts | 25.2 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 270(20) |
| Armament | PSKR-200, 203: 1 x 1 Igla-M SAM (4 9M39M), 2 x 6 - 30/54 AK-306, 1 x 1 - 7.6/90 PSKR-201, 202: 1 x 1 Igla-M SAM (4 9M39M), 1 x 6 - 30/54 AK-306, 1 x 1 - 12.7/79, 1 x 1 - 7.6/90 |
| Electronic equipment | Liman radar |
| Complement | 17 |
Standard scale images
PSKR-200 2000
Graphics

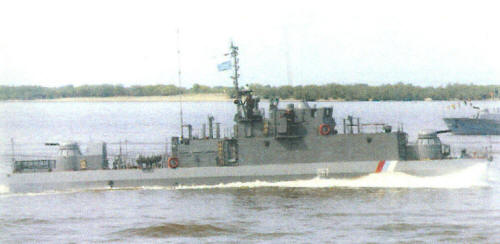

Admiral Kazakevich 2003
Project history
Smaller version of project 1249.
Modernizations
None.
Naval service
No significant events.
