PSKA-816 border guard boats (pr. 18623) (1999-2005)
PSKA-817 2005
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
ПСКА-816-818 [PSKA-816-818] |
Redan, St. Petersburg: PSKA-816-818 |
1999: PSKA-816 2003: PSKA-817 2005: PSKA-818 |
None |
None |
in service (2019): PSKA-816-818 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 36 |
| Length, m | 20.0 |
| Breadth, m | 4.50 |
| Draught, m | 1.10 |
| No of shafts | 2 |
| Machinery | PSKA-816, 817: 2 M-470 diesels PSKA-818: 2 M-470-04M3 diesels |
| Power, h. p. | 3000 |
| Max speed, kts | 45 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 310(40) |
| Armament | PSKA-816: 1 x 1 - 14.5/89, 1 x 1 - 7.6/90, 1 x 1 - 30 AGS-17 Plamia grenade launcher PSKA-817, 818: 1 x 1 - 14.5/89, 1 x 1 - 30 AGS-17 Plamia grenade launcher |
| Electronic equipment | Gals radar |
| Complement | 6 + 4 bordering party |
Graphics

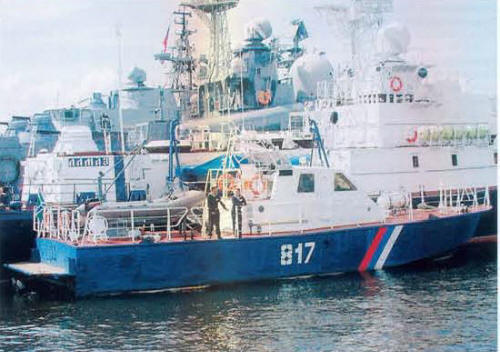

PSKA-817 2005
Project history
Small fast interceptors.
Modernizations
None.
Naval service
No significant events.
