PKASS-985 border guard boats (pr. 12200) (2006-2016)
PSKA-310 2011
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
ПСКА-300-315 [PSKA-300-315] ПСКА-316 [PSKA-316], 7.2016- ПКАСС-316 [PKASS-316] ПСКА-317, 318 [PSKA-317, 318] ПКАСС-985, 986 [PKASS-985, 986] |
Almaz, St. Petersburg: PSKA-300-306, 309-318, PKASS-985, 986 Vostochnaya verf', Vladivostok: PSKA-307, 308 |
2006: PKASS-985 2008: PKASS-986 2009: PSKA-300-303 2010: PSKA-304-306 2011: PSKA-307-310 2012: PSKA-311, 312 2013: PSKA-313, 314 2014: PSKA-315 2015: PSKA-316, 317 2016: PSKA-318 |
None |
None |
in service (2019): PSKA-300-315, 317, 318, PKASS-316, 985, 986 |
Technical data
| Displacement standard, t | 53 |
|---|---|
| Displacement full, t | 58 |
| Length, m | 30.3 |
| Breadth, m | 5.82 |
| Draught, m | 1.34 |
| No of shafts | 2 Arneson drives |
| Machinery | 2 MTU 12V2000M93 diesels |
| Power, h. p. | 3645 |
| Max speed, kts | 48 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 500(40) |
| Armament | 1 x 1 - 14.5/89 |
| Electronic equipment | ST50LCD or Gals or MR-3PV Liman-18M1 radar |
| Complement | 6 |
Standard scale images

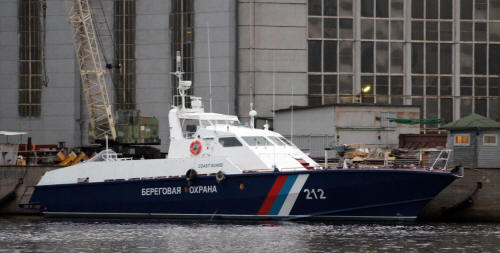

PSKA-300 2010
Graphics
PSKA-310 2011
Project history
Small fast patrol craft.
Modernizations
None.
Naval service
No significant events.
