PK-73 border guard boats (type MO-3) (1935)
No058
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
ПК-73 [PK-73], 11.1943- №048 [No048], 5.1944- MO-73 ПК-74 [PK-74], 11.1943- №058 [No058], 5.1944- MO-301 ПК-75 [PK-75], 11.1943- №068 [No068], 5.1944- MO-305 ПК-76 [PK-76], 11.1943- №088 [No088] |
5 Yd, Leningrad: PK-73-76 | 1935: PK-73 - 76 |
No088 (31.10.1943) |
none |
1950s: all survived |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 55 |
| Length, m | 26.2 |
| Breadth, m | 4.00 |
| Draught, m | 1.20 |
| No of shafts | 3 |
| Machinery | 3 petrol engines |
| Power, h. p. | 2065 |
| Max speed, kts | 24 |
| Fuel, t | petrol |
| Endurance, nm(kts) | 500(8) |
| Armament | 2 x 1 - 45/43 21K, 2 x 1 - 12.7/79, 2 DCR (8) |
| Electronic equipment | Tamir-1 sonar |
| Complement | 21 |
Graphics

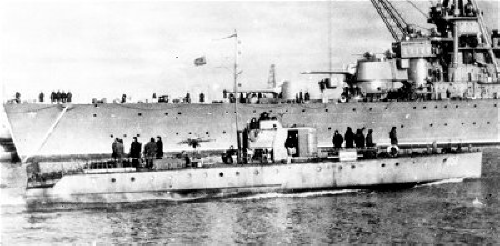

No058
Project history
Development of type MO-2 with a little changed machinery structure.
Modernizations
None.
Naval service
All boats were transferred to Navy in June 1941. Survived boats were transferred to Board Guard after war.
