IVAN SUSANIN border guard ships (project 97P) (1974 - 1981)





Volga 2007

Ships


Name No Yard No Builder Laid down Launched Comm Fate
Иван Сусанин [Ivan Susanin]   02650 Admiralty, Leningrad 31.7.1972 28.2.1973 30.12.1973 Navy, disarmed late 1970s
Айсберг [Aysberg]   02651 Admiralty, Leningrad 17.10.1973 27.4.1974 25.12.1974 stricken 6.2006
Руслан [Ruslan]   02652 Admiralty, Leningrad 26.12.1973 28.5.1974 26.9.1975 Navy, disarmed late 1970s
Имени XXV съезда КПСС [Imeni XXV Syezda KPSS] (ex-Днепр [Dnepr]), 4.1992- Анадырь [Anadyr']   02653 Admiralty, Leningrad 16.7.1975 14.2.1976 30.9.1976 stricken 11.2015
Дунай [Dunay]   02654 Admiralty, Leningrad 24.12.1976 5.8.1977 31.12.1977 stricken 9.2017
Нева [Neva] 170 02655 Admiralty, Leningrad 23.11.1977 28.7.1978 27.12.1978 in service (2019)
Волга [Volga] 183 02656 Admiralty, Leningrad 27.12.1979 19.4.1980 26.12.1980 in service (2019)
Имени XXVI съезда КПСС [Imeni XXVI Syezda KPSS], 4.1992- Иртыш [Irtysh], 5.1996- Мурманск [Murmansk]   02657 Admiralty, Leningrad 22.4.1980 3.7.1981 25.12.1981 stricken 2013


Technical data


Displacement standard, t

2785
Displacement full, t3525
Length, m

69.9
Breadth, m

18.0
Draught, m

6.50
No of shafts

2
Machinery

2 PG-147 electric motors, 3 13D-100 diesel-generators
Power, h. p.

5000
Max speed, kts

15
Fuel, t

diesel oil
Endurance, nm(kts)10700(10)
Armament

02650-02653, 02656, 02657: 1 x 2 - 76/59 AK-726, 2 x 6 - 30/54 AK-630, helicopter deck (for 1 Ka-25PS)

02654, 02655: 2 x 4 Strela-2 SAM (16 9M32), 1 x 2 - 76/59 AK-726, 2 x 6 - 30/54 AK-630, helicopter deck (for 1 Ka-25PS)
Electronic equipmentMR-302 Rubka, MR-105 Turel', 2x Volga radars
Complement126


Standard scale images


<i>Neva</i> 2000
Neva 2000


Graphics

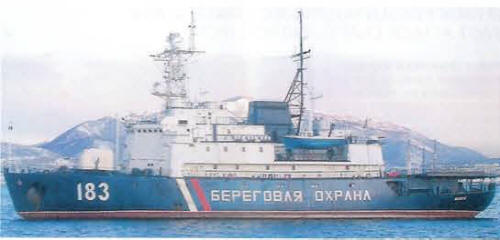

<i>Volga </i>2007
Volga 2007


Project history

Eight of a class of thirty-one modified as border patrol ships, classified as PSKR. They differed from the icebreakers in being armed and in having enlarged superstructures and helicopter platforms (no hangars). The 30mm guns are optically controlled.

Modernizations

late 1970s, Ivan Susanin, Ruslan: disarmed

1980s, all survived: - 1 Ka-25PS helicopter, 2x Volga radars; + 1 Ka-27PS helicopter, 2x Nayada-5 or (Nayada-5, MR-212 Vaygach) radars

2010s, Volga, Dunay: + Furuno 1832 radar

2010s, Neva: + Furuno 1525 radar

2010s, Volga, Anadyr', Neva: + Furuno 2125 radar

2010s, Anadyr': + MR-1000TII radar

2010s, Neva: + Liman-18 radar

2010s, Volga, Dunay, Neva: + MR-231 radar

2010s, Neva: + MR-415.4 Poisk radar

Naval service

No significant events.
