VITSE-ADMIRAL POPOV coast defence ship (1876)





Vitse-admiral Popov

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Вице-адмирал Попов [Vitse-admiral Popov] (ex-Киев [Kiyev])     Nikolayev Admiralty 14.1.1874 7.10.1875 8/1876 stricken 7.1903


Technical data


Displacement normal, t

3550

Displacement full, t
Length, m

36.6

Breadth, m

36.6

Draught, m

4.11 max

No of shafts

6

Machinery

6 HC, 8 cylindrical boilers

Power, h. p.

4500

Max speed, kts

8

Fuel, t

coal 170

Endurance, nm(kts)540(5.5)
Armour, mm

wrought iron; sides: 406 - 356, barbette: 406, deck: 76

Armament

1 x 2 - 305/17 obr. 1867, 8 x 1 - 87/17 4pdr obr. 1867, 2 x 5 - 37/17 Hotchkiss

Complement

203



Standard scale images


<i>Vitse-admiral Popov </i>1876
Vitse-admiral Popov 1876


Graphics

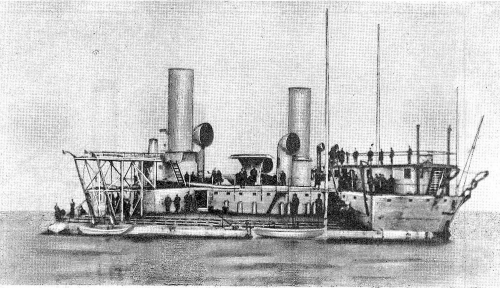

<i>Vitse-admiral Popov</i>
Vitse-admiral Popov


Project history

Black Sea Fleet, enlarged Novgorod. The 305mm guns were in a hydraulic disappearing mounting.

Ship protection

The side armour extended from the deck edge 0.5m above wl to 1.4m below, and was 229mm for the upper 0.9m and then 178mm with additional 178mm plates outside separated from the inner plates by 102mm wood. Hughes backing with heavy iron stringers was used. The deck rose to 1.6m aw and was 76mm thick, while the 229mm barbette extended 2.1m above the deck with additional 178mm plates outside separated from the inner plates by 102mm wood, and the funnels had 178mm for a height of 0.9m. The hull was heavily wood sheathed with 686mm outside the armour, and was coppered.

Modernizations

1880s: 2 outer shafts were removed; 3066hp, 6kts; - 2 x 1 - 87/17

Naval service

No significant events.
