MIHAIL KOGĂLNICEANU river monitors (1993-1996)





Ion C. Brătianu 1999

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Mihail Kogălniceanu 45   Şantierul Naval Turnu Severin, Mangalia     13.12.1993 in service (2019)
Ion C. Brătianu 46   Şantierul Naval Turnu Severin, Mangalia     28.12.1994 in service (2019)
Lascăr Catargiu 47   Şantierul Naval Turnu Severin, Mangalia     22.11.1996 in service (2019)


Technical data


Displacement standard, t522
Displacement full, t575
Length, m

51.9

Breadth, m

9.02

Draught, m1.72
No of shafts

2

Machinery

2 H165 diesels

Power, h. p.

3200

Max speed, kts

17

Fuel, t

diesel oil

Endurance, nm(kts)270(17)
Armour, mmturrets, hull
Armament

2 x 4 Strela-2M SAM (16 9K32M), 2 x 1 - 100/54 D-10TG, 2 x 2 - 30/80 M53, 2 x 4 - 14.5/93, 2 x 40 - 122 APRN-122 RL

Electronic equipmentPechora radar
Complement60


Standard scale images


<i>Mihail Kogălniceanu </i>2000

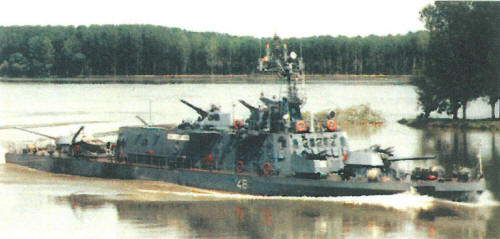

Mihail Kogălniceanu 2000


Graphics


<i>Ion C. Brătianu </i>1999
Ion C. Brătianu 1999


Project history

Carry inspection dingies on stern. Rocket launchers retract within the superstructure for reloading.

Ship protection

Splinter and bullet proof.

Modernizations

None.

Naval service

No significant events.
