ION C. BRĂTIANU river monitors (1907-1908)





  Ion C. Brătianu 1907

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Ion C. Brătianu 7/1951- M202   STT, San Marco, Austria-Hungary // Santieri Galati, Galatz 12.1906 7.1907 9.1907 captured by USSR 5.9.1944 (Азов [Azov]), returned 7.1951, stricken 1960
Lascar Catargiu     STT, San Marco, Austria-Hungary // Santieri Galati, Galatz 4.1907 10.1907 12.1907 sunk 24.8.1944
Alexandru Lachovari 7/1951- M201   STT, San Marco, Austria-Hungary // Santieri Galati, Galatz 2.1907 10.1907 1.1908 captured by USSR 5.9.1944 (Мариуполь [Mariupol']), returned 7.1951, stricken 1960
Mihail Kogălniceanu     STT, San Marco, Austria-Hungary // Santieri Galati, Galatz 2.1907 9.1907 12.1907 sunk 24.8.1944


Technical data


Displacement normal, t

680

Displacement full, t

750

Length, m

62.0 - 63.5

Breadth, m

10.5

Draught, m

1.80

No of shafts

2

Machinery

2 VTE, 2 Yarrow boilers

Power, h. p.

1800

Max speed, kts

13

Fuel, t

coal 60

Endurance, nm(kts)1500(9.7)
Armour, mmbelt: 70, bulkheads: 60, turrets: 75, deck: 70 - 20, CT: 75 - 70
Armament

3 x 1 - 120/33 G. L/35 K.04, 2 x 1 - 120/8 Haub. L/10, 4 x 1 - 47/40 L/44 (Skoda), 2 x 1 - 6.5/115

Complement

110



Standard scale images


<i>Ion C. Brătianu</i> 1914
Ion C. Brătianu 1914
<i>Ion C. Brătianu</i> 1941
Ion C. Brătianu 1941


Graphics

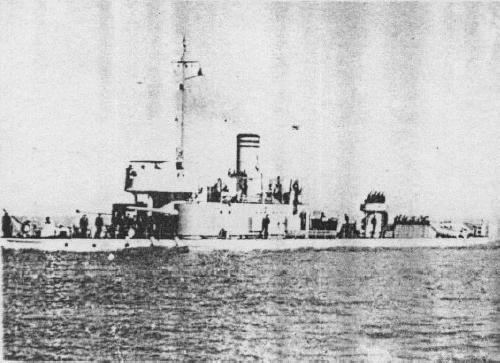

<i>Lascar Catargiu </i>1935
Lascar Catargiu 1935

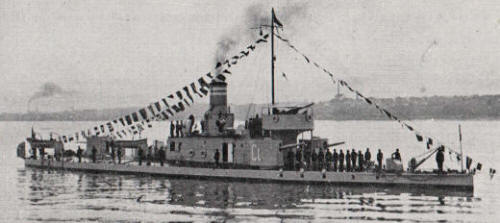

  <i>Ion C. Brătianu</i> 1907
  Ion C. Brătianu 1907


Project history

Built under Romanian order in Austria-Hungary, assembled from ready sections and launched at Galatz. On construction they were typical Danube monitors of "Austrian" type. They had enough strong protection and artillery arrangement in single turrets under triangular scheme: in any direction 2 guns could fire. In 1918 all were under control of Austria-Hungarian occupation troops, from late 1918 till 1920 under the control of British troops.

Ship protection

citadel consisted of 70mm belt closed by 60mm bulkheads and 45-20mm deck (70mm over boiler room)

Modernizations

1937-1938, all: superstructure was partly cut; - 3 x 1 - 120/33, 2 x 1 - 120/8, 2 x 1 - 47/40, 2 x 1 - 6.5/115; + 3 x 1 - 120/50 Škoda-Bofors Mk4, 1 x 1 - 37/80 SK C/30, 1 x 2 - 13.2/76

7/1951, M202: - 2 x 1 - 47/44, 1 x 1 - 37/83, 1 x 2 - 13.2/76; + 5 x 1 - 37/73 70K, 2 x 1 - 20/70 Mk 4, 4 x 1 - 12.7/79

7/1951, M201: - 2 x 1 - 47/44, 1 x 1 - 37/83, 1 x 2 - 13.2/76; + 5 x 1 - 37/73 70K, 4 x 1 - 20/70 Mk 4

Naval service

Mihail Kogălinceanu and Lascar Catargiu 24.8.1944 were sunk by Soviet aircraft on Danube (former at Kiliya, latter at Vilkovo). Both were salvaged, repaired in 1953 and used as TSs till 1957; then they were laid up into reserve and BU in 1959-1962. Alexandru Lachovari and Ion C. Brătianu 5.9.1944 weare captured by Soviet troops on Danube (former at Izmail, latter and Kislitsy). 30.10.1944 they were commissioned by Soviet Navy as Mariupol and Azov. 3.7.1951 they were returned to Romania, BU in 1959-1960.
