BARZAN corvettes (1996-1997)

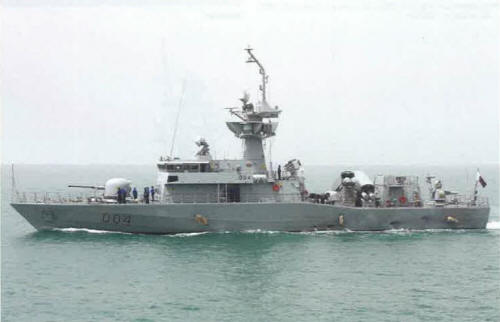

Barzan 2010
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| برزان [Barzan] | Q04 | Vosper Thornycroft, Woolston, UK | 7.2.1994 | 1.4.1995 | 9.5.1996 | in service (2020) | |
| حوار [Huwar] | Q05 | Vosper Thornycroft, Woolston, UK | 8/1994 | 15.7.1995 | 6.6.1996 | in service (2020) | |
| العديد [Al Udeid] | Q06 | Vosper Thornycroft, Woolston, UK | 4/1995 | 21.3.1996 | 16.12.1996 | in service (2020) | |
| الدبل [Al Deebeel] | Q07 | Vosper Thornycroft, Woolston, UK | 8/1995 | 21.8.1996 | 3.7.1997 | in service (2020) |
Technical data
| Displacement standard, t | 380 |
|---|---|
| Displacement full, t | 530 |
| Length, m | 52.0 pp 65.3 oa |
| Breadth, m | 9.00 |
| Draught, m | 2.50 |
| No of shafts | 4 |
| Machinery | 4 MTU 20V538 TB93 diesels |
| Power, h. p. | 18800 |
| Max speed, kts | 38 |
| Fuel, t | diesel oil 44 |
| Endurance, nm(kts) | 1800(12) |
| Armament | 2 x 4 MM40 Exocet SSM (8 MM40), 1 x 6 Sadral SAM (6 Mistral), 1 x 1 - 76/62 OTO-Melara Compact SR, 1 x 7 - 30/77 Goalkeeper SGE-30, 2 x 1 - 12.7/90 |
| Electronic equipment | MRR-3D, Sting, Goalkeeper, type 1007 radars, IRSCAN e/o system, DR-3000S1 Compact, ARBB-33 Salamandre ECM suites, Dagaie Mk 2 decoy RL, SEWACO FD CCS |
| Complement | 35 |
Standard scale images
Barzan 2000
Graphics
Barzan 2010
Project history
Vita class, design derived from Vosper Thornycroft "Vita" concept. Ordered in 1992.
Modernizations
None.
Naval service
No significant events.
