ESPADARTE submarine (1913)





Espadarte

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Espadarte E   Fiat-San Giorgio, La Spezia, Italy 1910 5.10.1912 1913 discarded 1931


Technical data


Displacement standard, t
Displacement normal, t245 / 300
Length, m

45.1

Breadth, m

4.20

Draught, m

2.90 mean 3.00 max

No of shafts

2

Machinery

2 Fiat diesels / 2 electric motors

Power, h. p.

550 / 300

Max speed, kts

13.8 / 8

Fuel, t

diesel oil

Endurance, nm(kts)1500(8.5) / 100(4)
Armament

2 - 450 TT (bow, 4)

Complement

21

Diving depth operational, m


Graphics

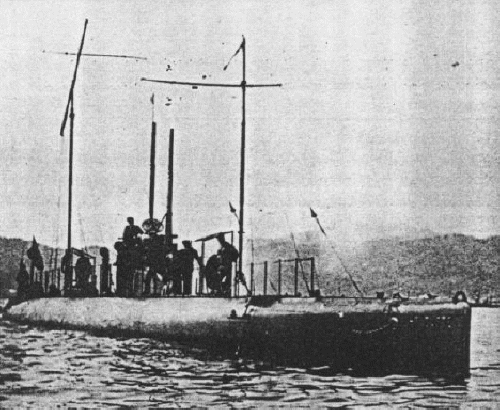

<i>Espadarte</i>
Espadarte


Project history

Prototype of Foca class boats. Laurenti-Fiat type.

Modernizations

None.

Naval service

No significant events.
